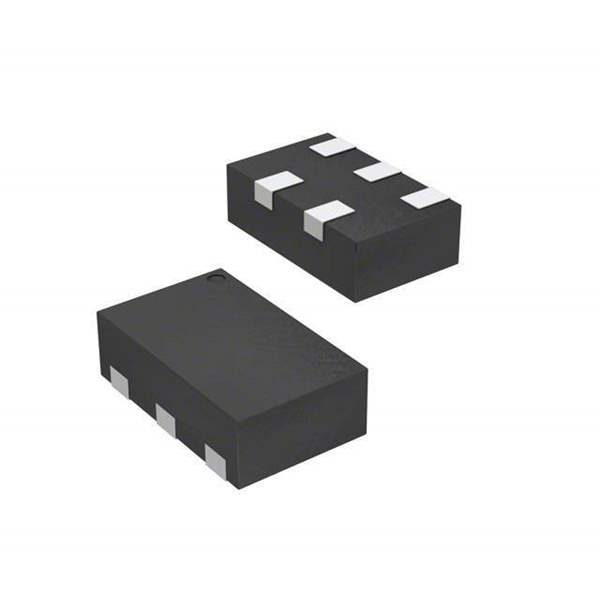

RCLAMP7522T.TNT Semtech Corporation RCLAMP7522T.TNT real image10966
Same model may have multiple batches, images only for reference.
RCLAMP7522T.TNT Semtech Corporation RCLAMP7522T.TNT real image10966
RCLAMP7522T.TNT Semtech Corporation RCLAMP7522T.TNT real image10966
Same model may have multiple batches, images only for reference.

RCLAMP7522T.TNT

Part No RCLAMP7522T.TNT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description TVS DIODE 5VWM 25VC
Datasheet
RCLAMP7522T.TNT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 3
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6.5V
Max Clamping Voltage 25V
Peak Pulse Current(Ippm) 4A (8/20μs)
Power Dissipation - Pd 100W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 0.25pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SLP1007N5T
Win Source Part Number 1091651-RCLAMP7522T.TNT
Popularity Medium
Supply and Demand Status Balance
Quantity per package 10k pcs
Ultra Librarian 3D Model Ultra Librarian RCLAMP7522T.TNT CAD Model

Description

The RClamp7522T is a steering diode from Semtech Corporation designed for use in general purpose applications.

  • Application: General Purpose
  • Stand-off Voltage: 5V
  • Breakdown Voltage: 6.5V
  • Peak Pulse Current: 4A
  • Supply and Demand: balanced
  • Package: 10k pcs
