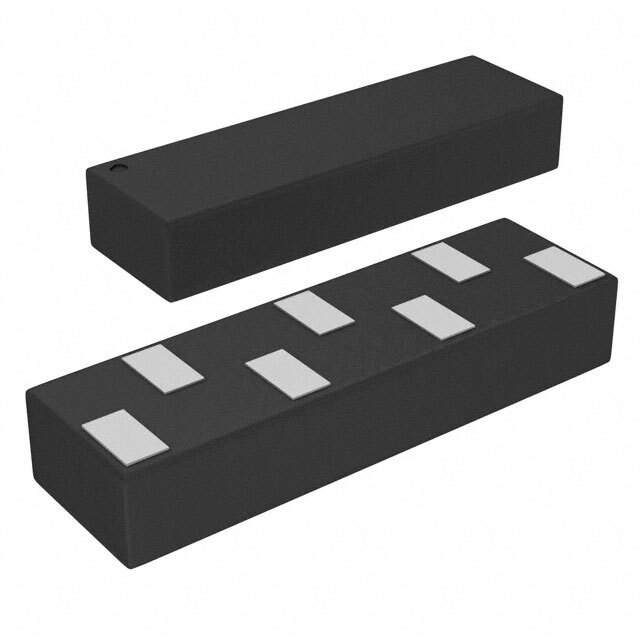

Same model may have multiple batches, images only for reference.

RCLAMP3346P.TNT

Name: RCLAMP3346P.TNT
Brand: Semtech Corporation
SKU: 801115
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RCLAMP3346P.TNT
Manufacturer	Semtech Corporation
Catalog	TVS - Diodes
Description	TVS DIODE 3.3V 4.5V SGP2708N7 / Low Capacitance RClamp 6-Line ESD protection
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Semtech Corporation
Packaging	Reel
Type	Steering (Rail to Rail)
Unidirectional Channels	6
Voltage - Reverse Standoff (Typ)	3.3V (Maximum)
Voltage - Breakdown (Min)	7V
Voltage - Clamping (Maximum) at Ipp	4.5V
Current - Peak Pulse (10/1000μs)	4.5A (8/20μs)
Power Line Protection	No
Applications	USB
Capacitance at Frequency	0.6pF at 1MHz
Temperature Range - Operating	-40°C ~ 125°C
Mounting Style	SMD
Manufacturer Package	7-UDFN
Supplier Device Package	SGP2708N7
Manufacturer Pack Quantity	10,000
MSL Level	1 (Unlimited)
Popularity	High
Supply and Demand Status	Sufficient
Win Source Part Number	801115-RCLAMP3346P.TNT
Ultra Librarian 3D Model	Ultra Librarian RCLAMP3346P.TNT CAD Model

Alternative Products

Description

The Semtech Corporation's RCLAMP3346P.TNT is a high-popularity electronic component designed to protect USB applications from electrostatic discharge and other voltage transients.

Case: SGP2708N7
Operating Temperature: -40°C to 125°C
Type: Steering (Rail to Rail)
Channels: Six, Unidirectional
Manufacturer: Semtech Corporation
