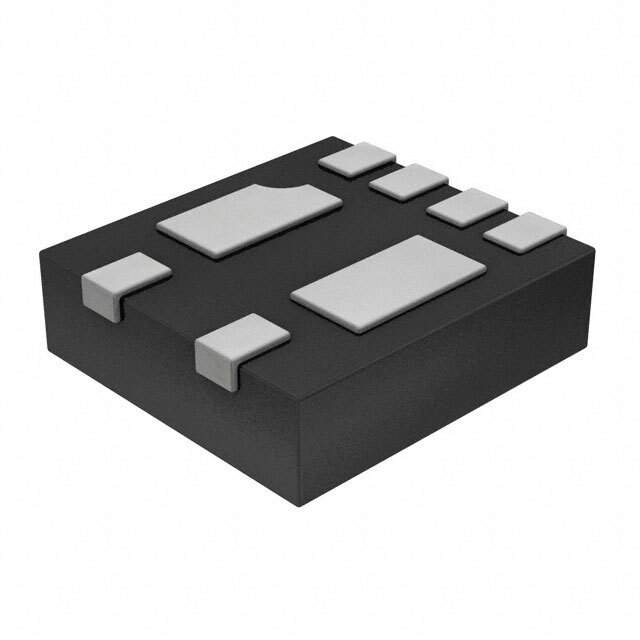

RCLAMP2656P.TGT Real Image
Same model may have multiple batches, images only for reference.

RCLAMP2656P.TGT

Part No RCLAMP2656P.TGT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description TVS DIODE 5VWM 20VC SLP2018P6
Datasheet
RCLAMP2656P.TGT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 21 Weeks
Features 20V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount SLP2018P6
Manufacturer Semtech Corporation
Series RailClamp®
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C (TJ)
Mounting Surface Mount
Package 6-UFDFN Exposed Pad
Case / Package SLP2018P6
Family Name RCLAMP2656
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Quantity per package 10000
Popularity High
Supply and Demand Status Limited
Win Source Part Number 891517-RCLAMP2656P.TGT
Ultra Librarian 3D Model Ultra Librarian RCLAMP2656P.TGT CAD Model

Description

The RCLAMP2656P.TGT is a surface mount TVS diode from Semtech Corporation with a 20V clamp and 3A (8/20µs) Ipp.

  • Manufacturer: Semtech Corporation
  • Product Name: RCLAMP2656P.TGT
  • Mounting Type: Surface Mount
  • Clamp Voltage: 20V
  • Current: 3A (8/20µs) Ipp
  • Series: RailClamp®
  • Application: Circuit Protection
  • Package: 6-UFDFN exposed pad
  • Packaging: Reel
  • Family: RCLAMP2656
  • Category: Circuit Protection
  • Operating Temperature Range: -55°C to 125°C (TJ)
  • Supply and Demand Status: Limited
  • Estimated Production Lead Time: 21 weeks
  • ECCN: EAR99
  • HTSUS: 8541.10.0080
