The RCLAMP1851ZA is a transient voltage suppressor (TVS) diode array designed by Semtech Corporation for protecting sensitive electronic equipment against electrostatic discharge (ESD), electrical fast transients (EFT), and lightning surges. It is commonly used in high-speed data lines and interfaces to ensure reliable operation in harsh environments.

Applications

• USB Interfaces: Protection of USB data lines against ESD.
• HDMI Interfaces: Surge protection for HDMI ports in consumer electronics.
• Ethernet Ports: Protection for Ethernet interfaces in networking equipment.
• Display Ports: Protecting DisplayPort interfaces in computers and monitors.
• Automotive Electronics: Protection of sensitive automotive systems from voltage transients.

Features

• Low Clamping Voltage: Provides fast and effective clamping of transient voltages.
• Low Capacitance: Minimizes signal distortion in high-speed data lines.
• Small Package: Available in compact packages, suitable for space-constrained designs.
• ESD Protection: Provides high ESD protection per IEC 61000-4-2 standard.
• RoHS Compliant: Complies with environmental standards for lead-free manufacturing.

Benefits

• Enhanced System Reliability: Protects sensitive components from damage caused by voltage transients.
• Improved Signal Integrity: Low capacitance ensures minimal signal degradation.
• Compact Design: Small package allows for easy integration into densely populated circuit boards.
• Compliance with Standards: Meets industry standards for ESD protection.
• Reduced Downtime: Prevents equipment failure due to voltage surges, minimizing downtime.

Additional Details

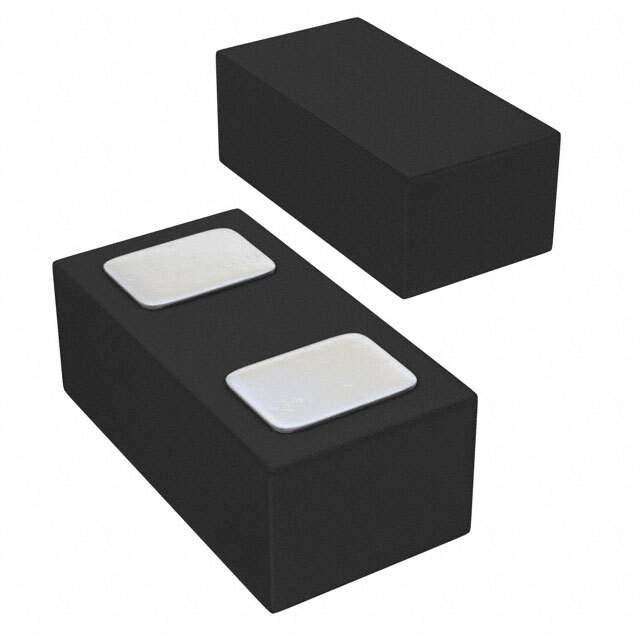

The RCLAMP1851ZA is typically supplied in a small surface mount package, such as a SOT-23 or similar. It is designed to handle multiple transient events without degradation. Important specifications include the breakdown voltage, clamping voltage, and surge current capability. The operating temperature range is usually between -40°C to +125°C.
