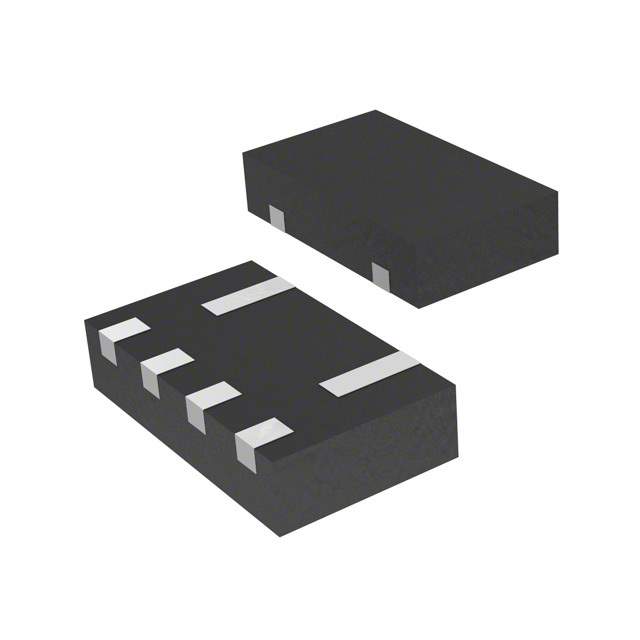

The RClamp1624T is a 4-channel Transient Voltage Suppressor (TVS) array designed and manufactured by Semtech Corporation. It's engineered for Electrostatic Discharge (ESD) protection of high-speed data interfaces. This device is ideal for safeguarding sensitive electronics from damage due to ESD strikes, providing a robust and reliable solution for signal line protection. The small package size and high level of protection make it suitable for portable devices, communication equipment, and various consumer electronics.

Applications

• ESD protection for USB ports
• HDMI interface protection
• DisplayPort interface protection
• Ethernet port protection
• General purpose I/O protection

Features

• 4-channel ESD protection
• Low clamping voltage
• Ultra-low capacitance
• Small footprint package
• Complies with IEC 61000-4-2 standard

Benefits

• Provides robust ESD protection for sensitive ICs.
• Minimizes signal degradation due to low capacitance.
• Reduces board space requirements with its small package.
• Ensures compliance with industry ESD standards.
• Improves system reliability and reduces field failures.

Specifications

The RClamp1624T features a typical clamping voltage of around 7V at a specified transmission line pulse (TLP) current. Its ultra-low capacitance is typically less than 0.5pF, ensuring minimal signal distortion at high data rates. It is designed to withstand ESD strikes of up to ±15kV contact discharge per IEC 61000-4-2. The package is typically a small form factor package such as a TDFN (Thin Dual Flat No-Lead) or similar. Refer to the Semtech datasheet for precise specifications and application guidelines.
