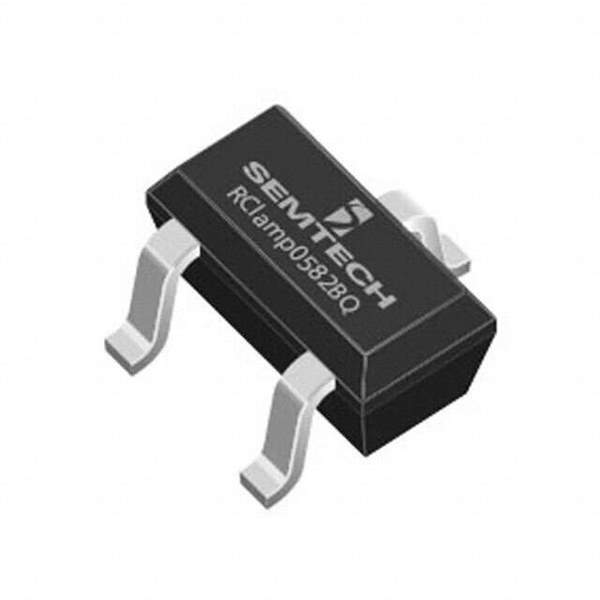

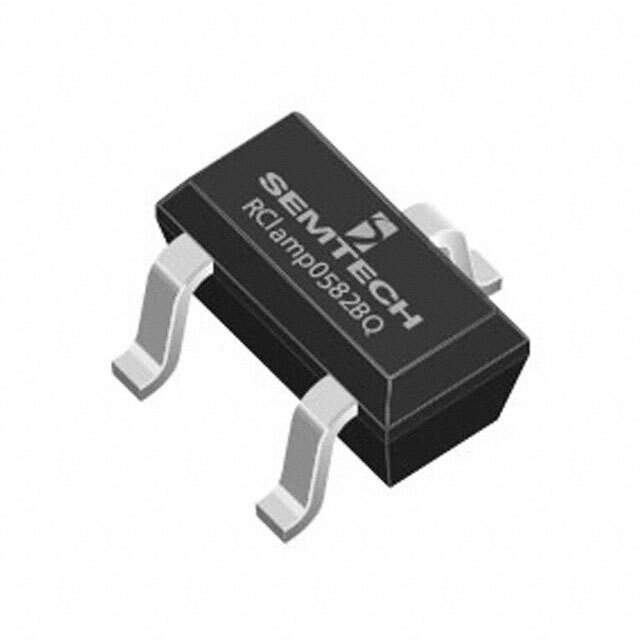

RCLAMP0582BQTCT Real Image
Same model may have multiple batches, images only for reference.

RCLAMP0582BQTCT

Part No RCLAMP0582BQTCT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description TVS DIODE 5VWM 20VC
Datasheet
RCLAMP0582BQTCT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 2
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 20V
Peak Pulse Current(Ippm) 15A (8/20μs)
Power Dissipation - Pd 300W
Applications Automotive
Capacitance @ Frequency 1.2pF @ 1MHz
Temperature Range - Operating -40°C to 105°C (TJ)
Mounting SMD (SMT)
Case / Package SC-75 (SOT523)
Win Source Part Number 1091637-RCLAMP0582BQTCT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RCLAMP0582BQTCT CAD Model

Description

The RCLAMP0582BQTCT is a Zener diode from Semtech Corporation designed for use in automotive applications.

  • Package: SC-75 (SOT523)
  • Channel: Unidirectional
  • Capacitance: 1.2pF @ 1MHz
  • Maximum Stand-Off Voltage: 5V
  • Minimum Breakdown Voltage: 6V
  • Maximum Clamping Voltage: 20V
  • Peak Pulse Current: 15A (8/20μs)
  • Power Dissipation: 300W
  • Popularity: Popular
  • Supply and Demand: Balanced
