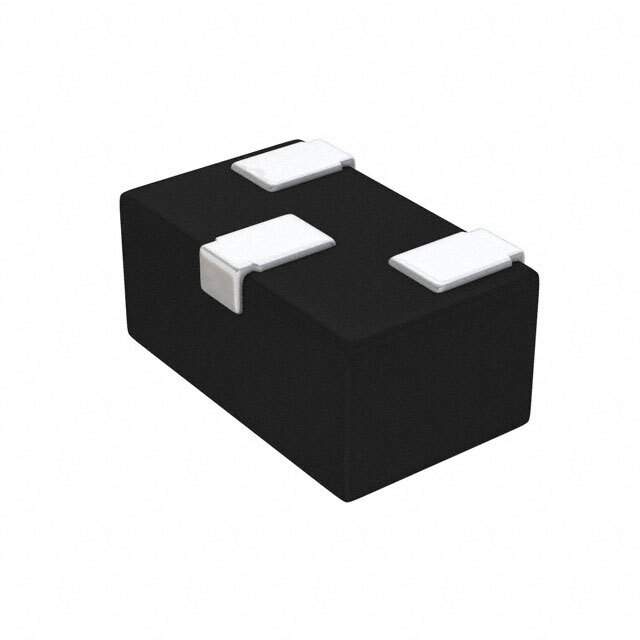

Same model may have multiple batches, images only for reference.

RCLAMP0552T.TNT

Name: RCLAMP0552T.TNT
Brand: Semtech Corporation
SKU: 1087779
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	RCLAMP0552T.TNT
Manufacturer	Semtech Corporation
Catalog	TVS - Diodes
Description	TVS DIODE 5VWM 20VC SLP1006N3T / 20V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount SLP1006N3T
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Semtech Corporation
Series	RailClamp®
Package	Tape & Reel
Type	Zener
Bidirectional Channels	2
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6.5V
Voltage - Clamping (Max) @ Ipp	20V
Current - Peak Pulse (10/1000µs)	3A (8/20µs)
Power - Peak Pulse	60W
Power Line Protection	No
Applications	HDMI
Capacitance @ Frequency	0.21pF @ 1MHz
Temperature Range - Operating	-55°C ~ 125°C (TJ)
Mounting	SMD (SMT)
Package / Case	3-XDFN
Supplier Device Package	SLP1006N3T
Base Product Number	RCLAMP0552
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	RCLAMP0552T.TNT-ND,RCLAMP0552T.TNTTR,RCLAMP0552T.TNTCT,RCLAMP0552T.TNTDKR
Standard Package	10,000
Win Source Part Number	1087779-RCLAMP0552T.TNT
Ultra Librarian 3D Model	Ultra Librarian RCLAMP0552T.TNT CAD Model

Alternative Products

Description

The Semtech RCLAMP0552T.TNT is a TVS-Diode circuit protection device that is used in various applications, especially HDMI.

Series: RailClamp
Packaging: Tape and reel
Channels: Bidirectional
Voltage-reverse standoff: 5V (Max)
Voltage-breakdown: 6.5V
Voltage-clamping: 20V @ Ipp
Peak pulse power: 60W
Capacitance: 0.21pF @ 1MHz
Current-peak pulse (10/1000µs): 3A (8/20μs)
MSL level: 1 (Unlimited)
HTSUS: 8541.10.0080
Win Source Part Number: 1087779
