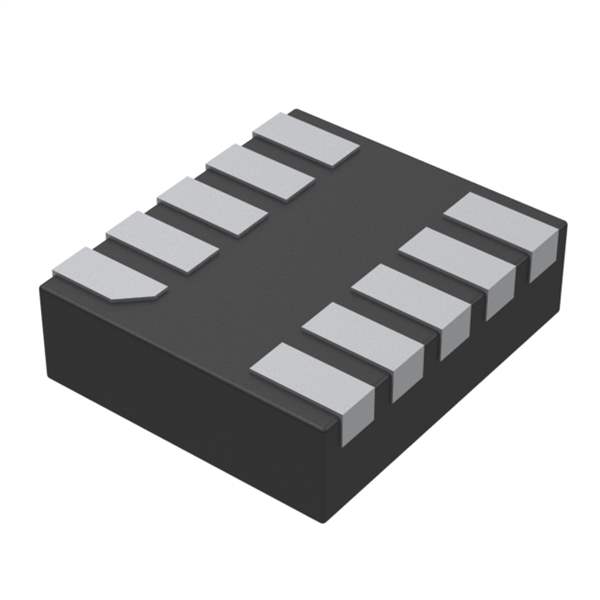

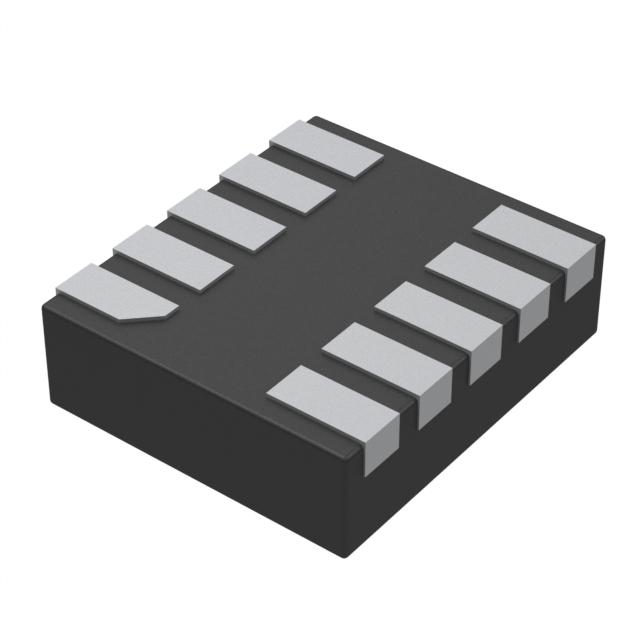

RCLAMP0524PATCT Semtech Corporation – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

RCLAMP0524PATCT

Part No RCLAMP0524PATCT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description 15V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SLP2510P8
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Semtech Corporation
Series RailClamp®
Packaging Reel - TR
Type Steering (Rail to Rail)
Unidirectional Channels 4
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 15V
Current - Peak Pulse (10/1000µs) 5A (8/20µs)
Power - Peak Pulse 150W
Power Line Protection Yes
Applications HDMI
Capacitance @ Frequency 0.8pF @ 1MHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 10-UFDFN
Supplier Device Package SLP2510P8
Base Product Number RCLAMP0524
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1478675-RCLAMP0524PATCT
Ultra Librarian 3D Model Ultra Librarian RCLAMP0524PATCT CAD Model
