Same model may have multiple batches, images only for reference.

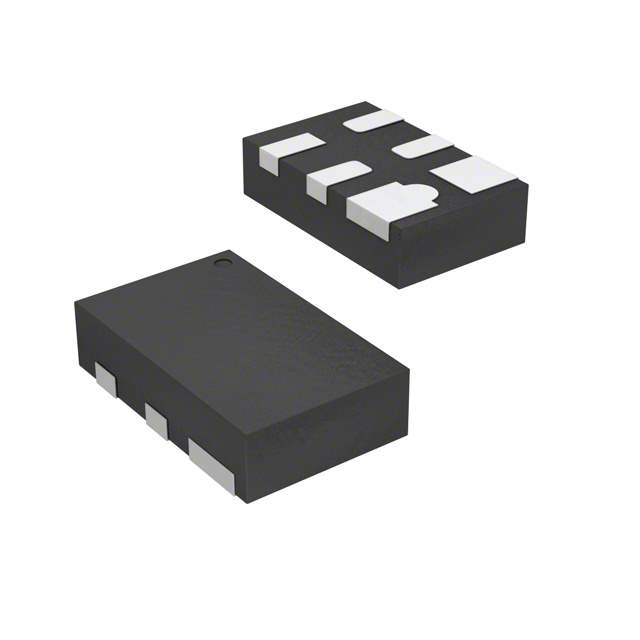

RCLAMP0522T.TCT Real Image
Same model may have multiple batches, images only for reference.

RCLAMP0522T.TCT

Part No RCLAMP0522T.TCT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description TVS DIODE 5VWM 15VC
Datasheet
RCLAMP0522T.TCT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 2
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 15V
Peak Pulse Current(Ippm) 5A (8/20μs)
Power Dissipation - Pd 150W
Power Line Protection Yes
Applications HDMI
Capacitance @ Frequency 0.8pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SLP1610P4T
Win Source Part Number 062406-RCLAMP0522T.TCT
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RCLAMP0522T.TCT CAD Model

Description

The Semtech Corporation RCLAMP0522T.TCT is a high-quality circuit protection component that is designed to deliver reliable performance.

  • Supply and Demand Status: balanced
  • Applications: HDMI
  • Packaging: Reel - TR
  • Type: Steering (Rail to Rail)
  • Mounting Type: SMD (SMT)
  • Number of Channels: 2 (Unidirectional)
  • Capacitance: 0.8pF @ 1MHz
  • Operating Temperature: -55°C to 125°C (TJ)
  • STAND-OFF Voltage (Vwm): 5V (Max)
  • Minimum Breakdown Voltage: 6V
  • Max Clamping Voltage: 15V
  • Peak Pulse Current(Ippm): 5A (8/20μs)
  • Power Dissipation - Pd: 150W
  • Case / Package: SLP1610P4T
