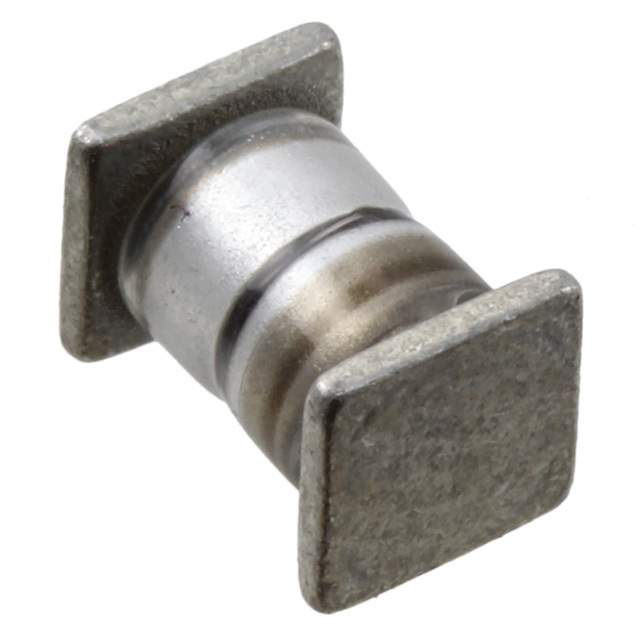

Same model may have multiple batches, images only for reference.

JANTXV1N5811US

Name: JANTXV1N5811US
Brand: Semtech Corporation
SKU: 1007974
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	JANTXV1N5811US
Manufacturer	Semtech Corporation
Catalog	Diodes, Rectifiers - Single
Description	D MET 6A SFST 150V HRV SM / Diode Standard 150 V 6A Surface Mount
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr	Semtech Corporation
Series	Military, MIL-PRF-19500/477
Package	Bulk
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	150 V
Current - Average Rectified (Io)	6A
Voltage - Forward (Vf) (Max) @ If	875 mV @ 4 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	30 ns
Current - Reverse Leakage @ Vr	5 µA @ 150 V
Capacitance @ Vr, F	60pF @ 5V, 1MHz
Mounting	SMD (SMT)
Package / Case	SQ-MELF
Base Product Number	1N5811
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	JANTXV1N5811USS-ND,JTXV1N5811US,JANTXV1N5811US,600-JTXV1N5811US,JANTXV1N5811USS,600-JTXV1N5811US-ND,600-JANTXV1N5811US
Standard Package	1
Win Source Part Number	1007974-JANTXV1N5811US
Ultra Librarian 3D Model	Ultra Librarian JANTXV1N5811US CAD Model

Alternative Products

Description

The JANTXV1N5811US is a rectifier diode from Semtech Corporation.

Diode Type: standard
Voltage DC Reverse: 150V
Current Average Rectified: 6A
Recovery Time: less than 500ns
Forward Voltage: 875mV @ 4A
Reverse Recovery Time: 30ns
Current Reverse Leakage: 5 µA @ 150V
Capacitance: 60pF @ 5V, 1MHz
Package: SQ-MELF
Operating Temperature: Not specified
RoHS Compliance: non-compliant
