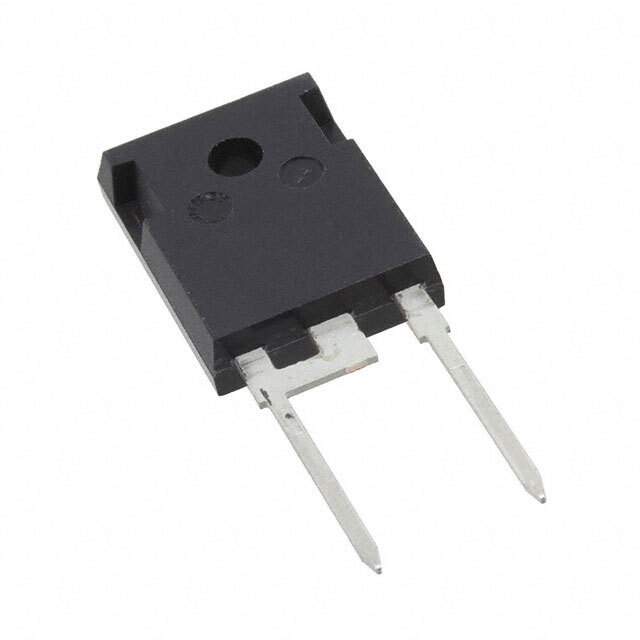

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr SemiQ
Series Amp+™
Package Tube
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 30A (DC)
Voltage - Forward (Vf) (Max) @ If 1.8 V @ 30 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 60 µA @ 1200 V
Capacitance @ Vr, F 1905pF @ 1V, 1MHz
Mounting Type Through Hole
Package / Case TO-247-2
Supplier Device Package TO-247-2
Operating Temperature - Junction -55°C ~ 175°C
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 1560-1054-5
Standard Package 30
Win Source Part Number 1213706-GP2D030A120B
Ultra Librarian 3D Model Ultra Librarian GP2D030A120B CAD Model

Description

The SemiQ 1213706-GP2D030A120B is a silicon carbide Schottky diode that is part of the Amp+™ series. 1213706-GP2D030A120B is the product, and SemiQ is the manufacturer.

  • Type: Silicon Carbide Schottky Diode
  • Series: Amp+™
  • Voltage: 1200 V
  • Average Rectified Current (DC): 30 A
  • Forward Voltage: 1.8 V @ 30 A
  • Reverse Recovery Time: 0 ns
  • Capacitance: 1905pF @ 1V, 1MHz
  • Operating Temperature: -55°C to 175°C
  • Case: TO-247-2
  • Mount: Through-Hole
