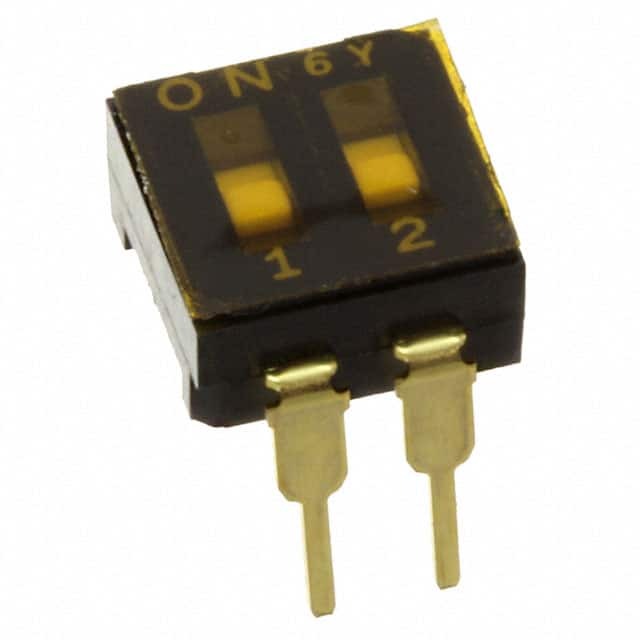

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Nidec Copal Electronics
Series CFS
Package Tube
Product Status Active
Circuit SPST
Number of Positions 2
Current Rating (Amps) 100mA
Voltage Rating 6VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.177" (4.50mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.256" (6.50mm)
Electrical Life 1,000 Cycles
Base Product Number CFS-0200
Standard Package 72 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 866339-CFS-0200MC
Ultra Librarian 3D Model Ultra Librarian CFS-0200MC CAD Model

Description

The 866339-CFS-0200MC is a DIP switch from the CFS series by Nidec Copal Electronics.

  • Manufacturer: Nidec Copal Electronics
  • Product: 866339-CFS-0200MC
  • Type: DIP Switch
  • Series: CFS
  • Positions: 2
  • Pitch: 0.100" (2.54mm)
  • Termination Style: PC Pin
  • Seal: Tape Seal
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Voltage Rating: 6VDC
  • Height Above Board: 0.177" (4.50mm)
  • Length: 0.256" (6.50mm)
  • Washable: Yes
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 85°C
  • Standard Package: 72 pieces
  • Material: Polyphenylene Sulfide (PPS)
  • Circuit: Single-Pole, Single-Throw (SPST)
  • Actuator: Slide
  • Electrical Life: 1,000 cycles
