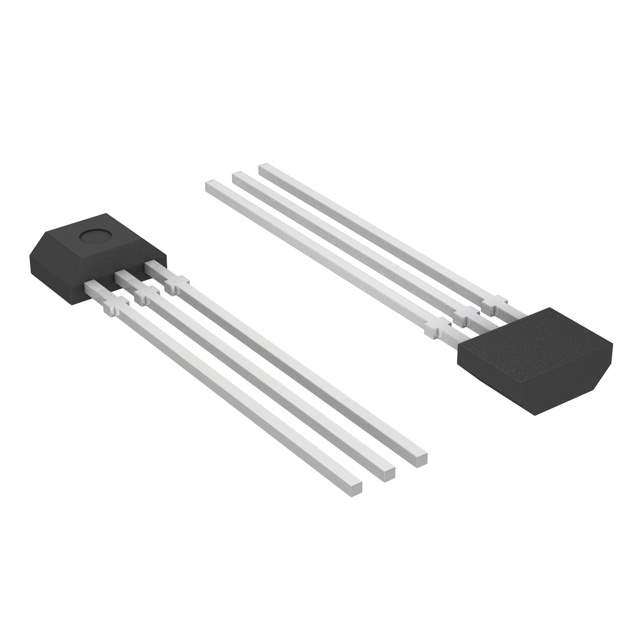

The A1103LUA is a unipolar Hall-effect switch manufactured by SEC Electronics Inc. This sensor is designed to detect the presence of a magnetic field and provide a digital output signal indicating whether the magnetic field strength exceeds a certain threshold. It is commonly used in applications requiring contactless sensing of position or speed.

Applications:

• Brushless DC motor commutation
• Position detection
• Speed sensing
• Proximity detection
• Flow meters

Features:

• Unipolar Hall-effect switch
• Digital output
• High sensitivity
• Low operating voltage
• Small size

Benefits:

• Contactless sensing
• High reliability
• Long operating life
• Immune to dust and dirt
• Easy to interface with microcontrollers

Additional Details:

The A1103LUA operates based on the Hall effect principle, where a voltage difference (Hall voltage) is generated across a conductor carrying current when a magnetic field is applied perpendicular to the current. This Hall voltage is proportional to the strength of the magnetic field. The A1103LUA incorporates a Hall element, an amplifier, and a Schmitt trigger to provide a clean digital output. When a magnetic field of sufficient strength is applied, the output switches to a low state, indicating the presence of the magnetic field. When the magnetic field is removed, the output returns to a high state. The unipolar characteristic means that the sensor responds to only one magnetic pole (typically the south pole).

The A1103LUA is packaged in a small, surface-mount package, making it suitable for space-constrained applications. Its low operating voltage and high sensitivity make it a versatile sensor for various applications.
