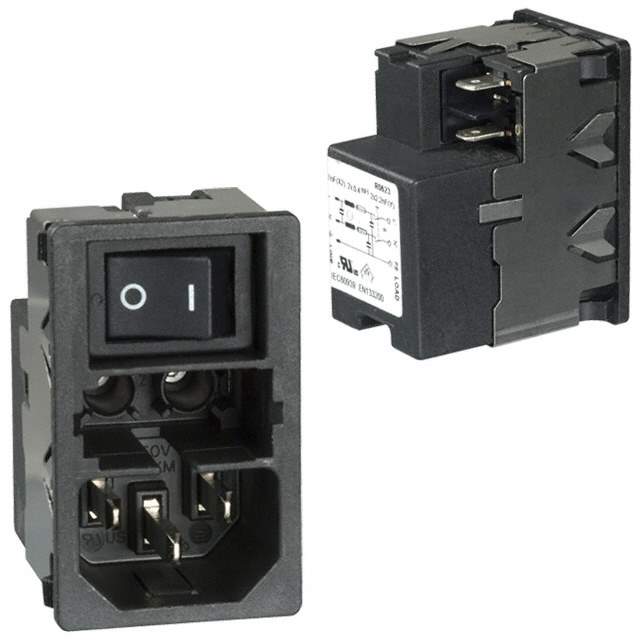

KMF1.1191.11 Real Image
Same model may have multiple batches, images only for reference.

KMF1.1191.11

Part No KMF1.1191.11
Manufacturer Schurter Inc.
Catalog AC Power Connectors
Description PWR ENT MOD RCPT IEC320-C14 PNL / Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
Datasheet
KMF1.1191.11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - AC Power Connectors - Power Entry Modules (PEM)
Mfr SCHURTER Inc.
Series KMF
Package Bulk
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades - Module
Current Rating - Appliance Inlet 10A
Voltage Rating - Appliance Inlet 250VAC
Number of Positions 3
Filter Type Filtered (EMI, RFI) - Commercial
Current Rating - Filter 10A
Switch Features Switch On-Off
Accomodates a Fuse Yes (Fuse Not Included)
Mounting Type Panel Mount, Snap-In
Termination Quick Connect - 0.189" (4.8mm)
Features Shielded
Fuse Holder, Drawer Drawer Sold Separate
Panel Cutout Dimensions Rectangular - 28.80mm x 47.80mm
Panel Thickness 0.039" ~ 0.098" (1.00mm ~ 2.50mm)
Material Flammability Rating UL94 V-0
Ingress Protection IP40
Approval Agency CCC, cULus, ENEC
Base Product Number KMF1.1191
Standard Package 20
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Win Source Part Number 1349869-KMF1.1191.11
Ultra Librarian 3D Model Ultra Librarian KMF1.1191.11 CAD Model

Description

The KMF1.1191.11 is a power entry module (PEM) manufactured by SCHURTER Inc.

  • Series: KMF
  • Number of Positions: 3
  • Package: Bulk
  • Panel Cutout Dimensions: 28.80mm x 47.80mm
  • Filtered (EMI, RFI): Yes - Commercial
  • Switch On-Off: Yes
  • Current Rating - Appliance Inlet: 10A
  • Voltage Rating - Appliance Inlet: 250VAC
  • Fuse: Accommodates, Not Included
