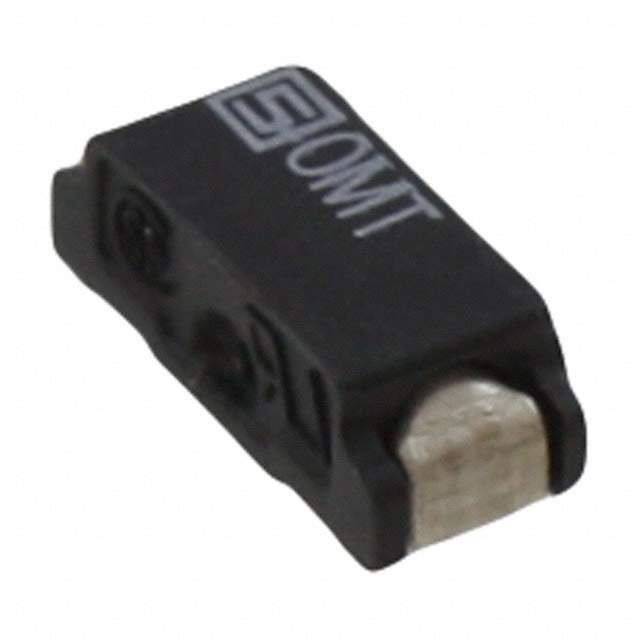

3404.0121.22 Real Image
Same model may have multiple batches, images only for reference.

3404.0121.22

Part No 3404.0121.22
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BRD MNT 5A 125VAC/VDC 2SMD / 5 A 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, J-Lead
Datasheet
3404.0121.22 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Manufacturer Schurter Inc.
Packaging Reel - TR
Mounting Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 5 A
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Slow Blow
Case / Package 2-SMD, J-Lead
Breaking Capacity @ Rated Voltage 100A
Melting I2t 20.8
Approval Agency cULus
Temperature Range - Operating -40°C ~ 85°C
Size / Dimension 0.291" L x 0.122" W x 0.102" H (7.40mm x 3.10mm x 2.60mm)
Base Product Number 3404.0121
RoHS Status ROHS3 Compliant
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Other Part Number 486-3873-2,486-3873-1,486-3873-6,3404.0121.22-ND
Standard Package 750
Win Source Part Number 1334742-3404.0121.22
Ultra Librarian 3D Model Ultra Librarian 3404.0121.22 CAD Model

Description

The 3404.0121.22 is a circuit protection fuse manufactured by Schurter Inc.

  • Win Source Part Number: 1334742-3404.0121.22
  • Packaging: Reel - TR
  • Color: Not Specified
  • Fuse Type: Board Mount (Cartridge Style Excluded)
  • Voltage Rating - AC: 125 V
  • Voltage Rating - DC: 125 V
  • Response Time: Slow Blow
  • Breaking Capacity @ Rated Voltage: 100A
  • Melting I2t: 20.8
  • Size / Dimension: 0.291" L x 0.122" W x 0.102" H (7.40mm x 3.10mm x 2.60mm)
  • Standard Package: 750
  • Mounting: Surface Mount
  • Temperature Range - Operating: -40°C ~ 85°C
  • Case / Package: 2-SMD, J-Lead
