Same model may have multiple batches, images only for reference.

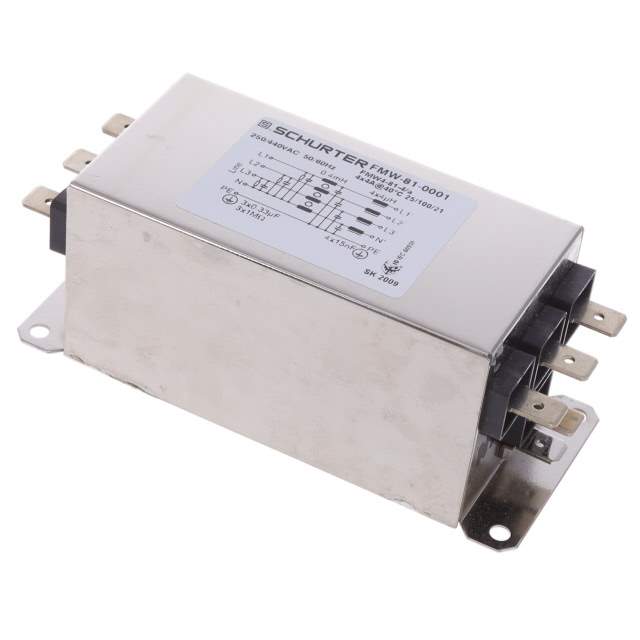

FMW-81-0001 Real Image
Same model may have multiple batches, images only for reference.

FMW-81-0001

Part No FMW-81-0001
Manufacturer Schurter Inc.
Catalog Power Line Filter Modules
Description LINE FILTER 250/440VAC 4A CHAS / Three Phase (Wye) EMC/EMI Line Filter 4 A 250V, 440VAC 50/60Hz Two Stage Quick Connect
Datasheet
FMW-81-0001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Power Line Filter Modules
Mfr SCHURTER Inc.
Series FMW4-81(95)
Package Bulk
Filter Type Three Phase (Wye)
Configuration Two Stage
Voltage - Rated AC 250V, 440V
Current 4 A
Frequency - Operating 50/60Hz
Applications General Purpose
Approval Agency ENEC, VDE
Temperature Range - Operating -25°C ~ 100°C
Mounting Type Chassis Mount
Termination Style Quick Connect
Inductance L1 - 400µH, L2 - 4µH
Base Product Number FMW-81
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names FMW-81-0001-ND,FMW4-81-4/A,486-5654
Standard Package 5
Win Source Part Number 1059520-FMW-81-0001
Ultra Librarian 3D Model Ultra Librarian FMW-81-0001 CAD Model

Description

This electronic component has a Win Source part number of 1059520-FMW-81-0001 and is a filter power line filter module.

  • Win Source Part Number: 1059520-FMW-81-0001
  • Series: FMW4-81(95)
  • Termination Style: Quick Connect
  • Package: Bulk
  • Configuration: Two Stages
  • Filter Type: Three Phase (Wye)
  • Current: 4A
  • Rated AC Voltage: 250V, 440V
  • Operating Frequency: 50/60Hz
  • Mounting: Chassis Mount
  • Operating Temperature Range: -25°C ~ 100°C
  • Alternative Parts: Available upon request
  • MSL Level: Vendor Undefined
  • REACH: Unaffected
  • HTSUS: 8548.00.0000
  • Manufacturer: SCHURTER Inc.
  • Other Names: FMW-81-0001-ND, FMW4-81-4/A, 486-5654
  • Base Product Number: FMW-81
  • Approvals: ENEC and VDE
