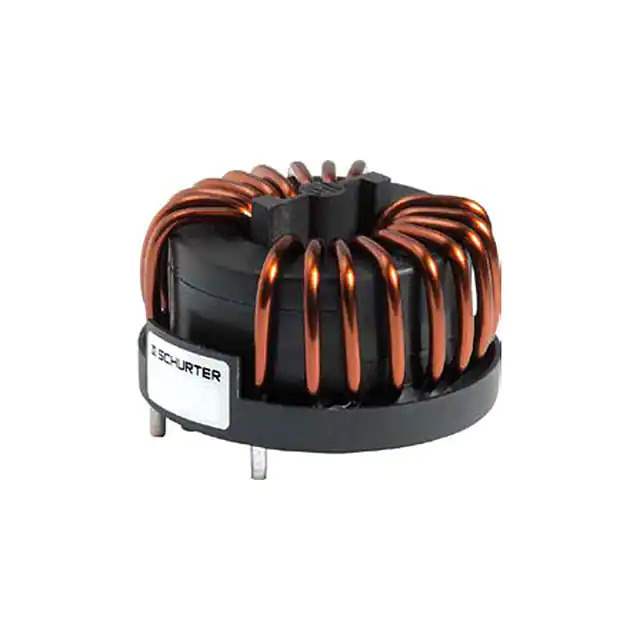

DKIH-3237-122Q-NK Real Image
Same model may have multiple batches, images only for reference.

DKIH-3237-122Q-NK

Part No DKIH-3237-122Q-NK
Manufacturer Schurter Inc.
Catalog Common Mode Chokes
Description CMC 12A 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr SCHURTER Inc.
Series DKIH
Package Bulk
Product Status Active
Number of Lines 2
Current Rating (Max) 12A
DC Resistance (DCR) (Max) 7mOhm
Temperature Range - Operating -40°C ~ 100°C
Approval Agency ENEC, UR
Mounting Type Through Hole
Size / Dimension 1.457" Dia (37.00mm)
Height (Max) 1.024" (26.00mm)
Package / Case Horizontal, 4 PC Pin
Base Product Number DKIH
Standard Package 40 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 855812-DKIH-3237-122Q-NK
Ultra Librarian 3D Model Ultra Librarian DKIH-3237-122Q-NK CAD Model

Description

The 855812-DKIH-3237-122Q-NK is a common mode choke from the DKIH series by SCHURTER Inc.

  • Application: Filtering
  • Maximum Current: 12A
  • Size: 1.457" Diameter, 1.024" Height
  • Mounting Type: Through Hole
  • Package Case: Horizontal, 4 PC Pin
  • Operating Temperature: -40°C to 100°C
  • Product Status: Active
  • Approvals: ENEC, UR
