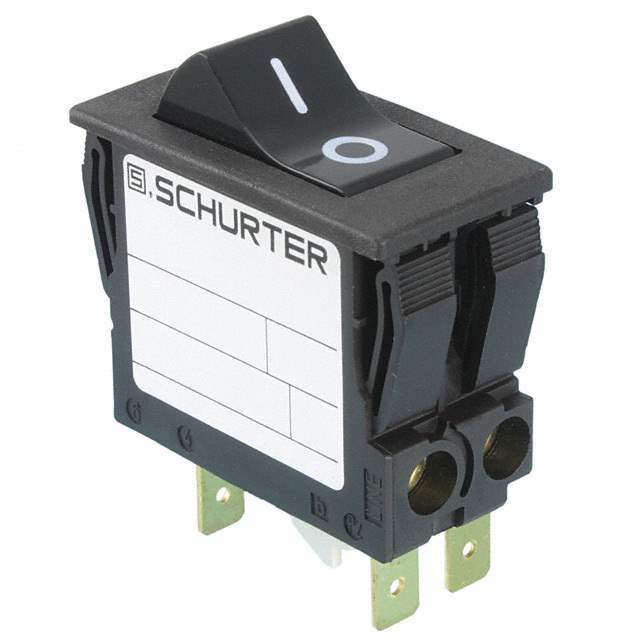

4430.2196

Part No 4430.2196
Manufacturer Schurter Inc.
Catalog Circuit Breakers
Description CIR BRKR THRM 20A 240VAC 60VDC
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection> Circuit Breakers
Manufacturer SCHURTER Inc.
Packaging Bulk
Part Status Active
Mounting Type Panel Mount
Breaker Type Thermal
Current Rating (Amps) 20A
Voltage Rating - AC 240 V
Voltage Rating - DC 60 V
Actuator Type Rocker
Ultra Librarian 3D Model Ultra Librarian 4430.2196 CAD Model

Description

  • Thermal circuit breaker
  • 1 or 2 pole thermal overload protection
  • Positively trip-free release
  • High configurability
  • Rocker non-illuminated or illuminated
  • Snap-in version
  • Quick connect terminal 6.3 x 0.8 mm or screw clamp terminal M3.5 x 6 mm (lineside P1, P2)
