Same model may have multiple batches, images only for reference.

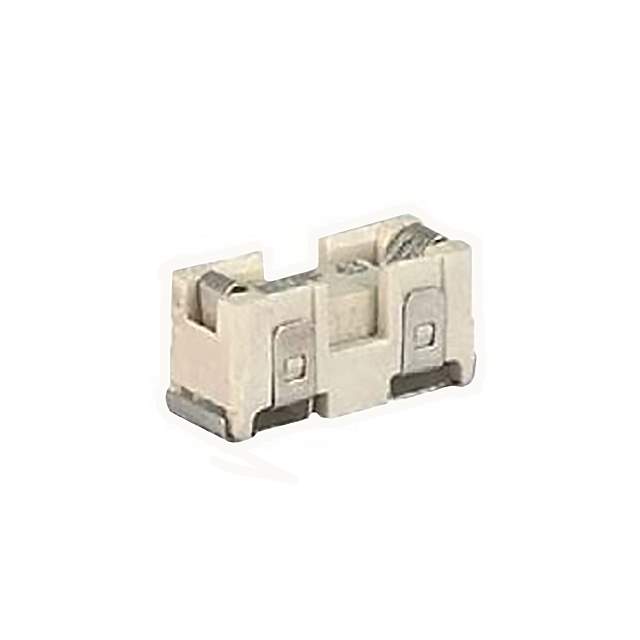

3422.0014.11 Real Image
Same model may have multiple batches, images only for reference.

3422.0014.11

Part No 3422.0014.11
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BOARD MNT 3A 63VAC/VDC 2SMD
Datasheet
3422.0014.11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Schurter Inc.
Packaging Bulk
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 3A
Voltage Rating - AC 63V
Voltage Rating - DC 63V
Response Time Fast
Mounting Holder/Surface Mount
Breaking Capacity @ Rated Voltage 50A
Nominal Melting - I2t 1.3
Temperature Range - Operating -40°C to 85°C
Dimension 0.472" L x 0.205" W x 0.236" H (12.00mm x 5.20mm x 6.00mm)
Win Source Part Number 1021856-3422.0014.11
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 3422.0014.11 CAD Model

Description

The 1021856-3422.0014.11 is a board mount fuse manufactured by Schurter Inc.

  • Current Rating: 3A
  • Voltage Rating: 63V AC/DC
  • Response Time: Fast
  • Breaking Capacity: 50A @ rated voltage
  • Approvals: Approved for use in various applications
  • Mounting: Holder/Surface Mount
  • RoHS Compliant: Yes
  • Popularity Rating: Medium
  • Supply and Demand Status: Balance
