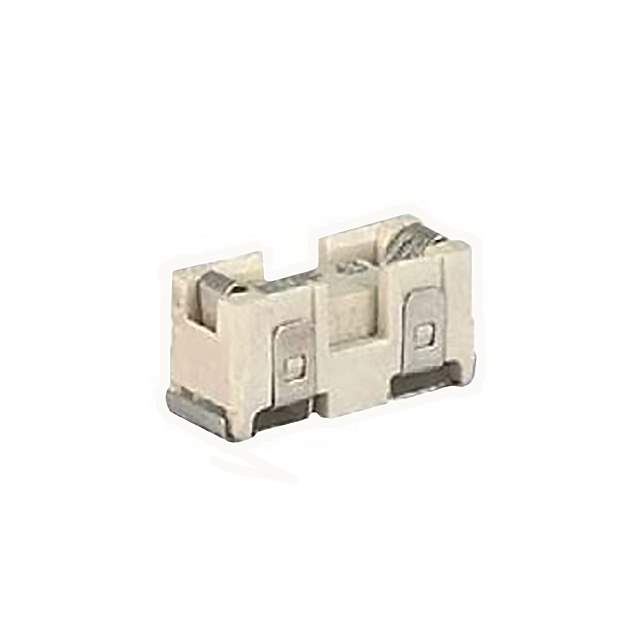

3422.0009.11 Real Image
Same model may have multiple batches, images only for reference.

3422.0009.11

Part No 3422.0009.11
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BOARD MNT 1A 63VAC/VDC 2SMD
Datasheet
3422.0009.11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Schurter Inc.
Packaging Bulk
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 1A
Voltage Rating - AC 63V
Voltage Rating - DC 63V
Response Time Fast
Mounting Holder/Surface Mount
Breaking Capacity @ Rated Voltage 50A
Nominal Melting - I2t 0.078
Temperature Range - Operating -40°C to 85°C
Dimension 0.472" L x 0.205" W x 0.236" H (12.00mm x 5.20mm x 6.00mm)
Win Source Part Number 1021845-3422.0009.11
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 3422.0009.11 CAD Model

Description

The Schurter Inc. board mount fuse is a reliable and efficient circuit protection solution.

  • Voltage Rating: 63V AC and DC
  • Response Time: fast
  • Breaking Capacity: 50A @ rated voltage
  • Operating Temperature: -40°C to 85°C
  • Nominal Melting I2t: 0.078
  • Packaging: bulk
  • Supply and Demand Status: sufficient
