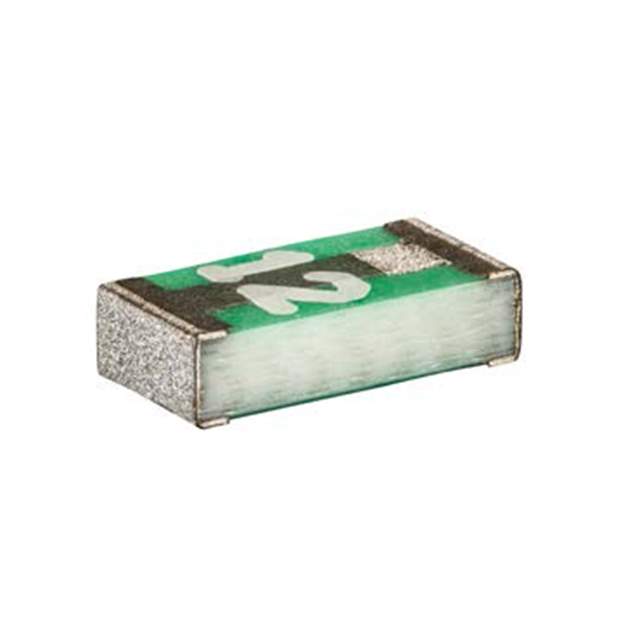

3413.0332.22 Real Image
Same model may have multiple batches, images only for reference.

3413.0332.22

Part No 3413.0332.22
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 25A 32VAC 63VDC
Datasheet
3413.0332.22 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Schurter Inc.
Series UST 1206
Packaging Reel package
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 25A
Voltage Rating - AC 32V
Voltage Rating - DC 63V
Response Time Slow
Package 1206 (3216 Metric)
Mounting SMD
Breaking Capacity @ Rated Voltage 100A
Melting I2t 220
Approvals cURus
Operating Temperature Range -55°C ~ 90°C
Dimension 0.126" L x 0.063" W x 0.024" H (3.20mm x 1.60mm x 0.60mm)
Resistance 0.0013 Ohm
Win Source Part Number 763344-3413.0332.22
Popularity Medium
Supply and Demand Status Limited
Family Name 3413
Introduction Date July 15, 2008
ECCN EAR99
Country of Origin Switzerland
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian 3413.0332.22 CAD Model

Description

The Schurter Inc. UST 1206 is a board mountable fuse designed to protect electronic circuits.

  • Current Rating: 25A
  • Voltage Rating (AC): 32V
  • Voltage Rating (DC): 63V
  • Response Time: Slow
  • Breaking Capacity: 100A
  • Melting I2t: 220
  • Resistance: 0.0013 Ohm
  • Operating Temperature: -55°C to 90°C
  • Approvals: cURus
  • Packaging: Reel
  • Dimensions: 0.126" L x 0.063" W x 0.024" H (3.20mm x 1.60mm x 0.60mm)
  • Family: 3413
  • Introduction Date: July 15, 2008
  • Estimated EOL Date: 2024
