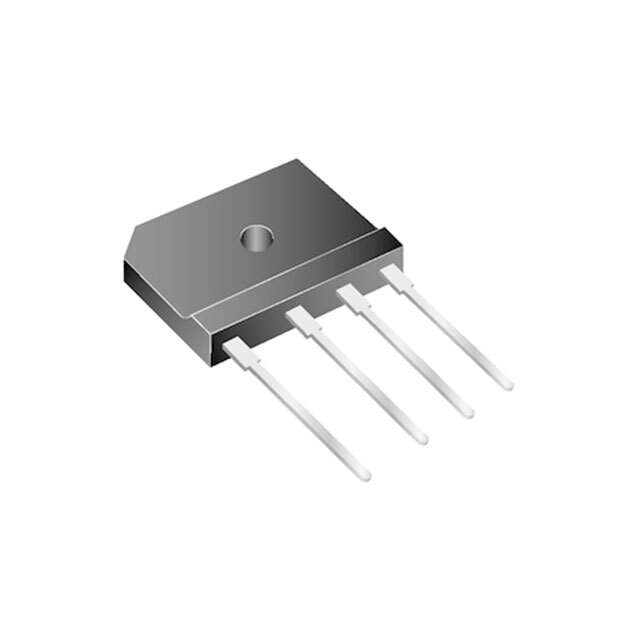

LVE2560-M3R/P Real Image
Same model may have multiple batches, images only for reference.

LVE2560-M3R/P

Part No LVE2560-M3R/P
Manufacturer Vishay
Catalog Bridge Rectifiers
Description DIODE BRIDGE  /  Bridge Rectifier Single Phase Standard 600 V Through Hole GSIB-5S
Datasheet
LVE2560-M3R/P Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Vishay General Semiconductor - Diodes Division
Package Tape & Reel (TR)
Product Status Obsolete
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 25 A
Voltage - Forward (Vf) (Max) @ If 920 mV @ 12.5 A
Current - Reverse Leakage @ Vr 10 µA @ 600 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, GSIB-5S
Supplier Device Package GSIB-5S
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 112-LVE2560-M3R/PTR
Standard Package 1,200
Win Source Part Number 1155349-LVE2560-M3R/P
Ultra Librarian 3D Model Ultra Librarian LVE2560-M3R/P CAD Model

Description

The Vishay General Semiconductor - Diodes Division LVE2560-M3R/P is a single-phase, standard technology diode bridge rectifier.

  • Package: Tape and reel
  • Standard Package: 1,200
  • Current: 25 A
  • Voltage: 920 mV @ 12.5 A
  • Current Reverse Leakage: 10 microamps @ 600 V
  • Peak Reverse Voltage: 600 V
  • Mounting Type: Through-hole
  • Package/Case: 4-SIP, GSIB-5S
  • MSL Level: 1 (unlimited)
  • HTSUS: 8541.10.0080
  • Status: Obsolete
