Same model may have multiple batches, images only for reference.

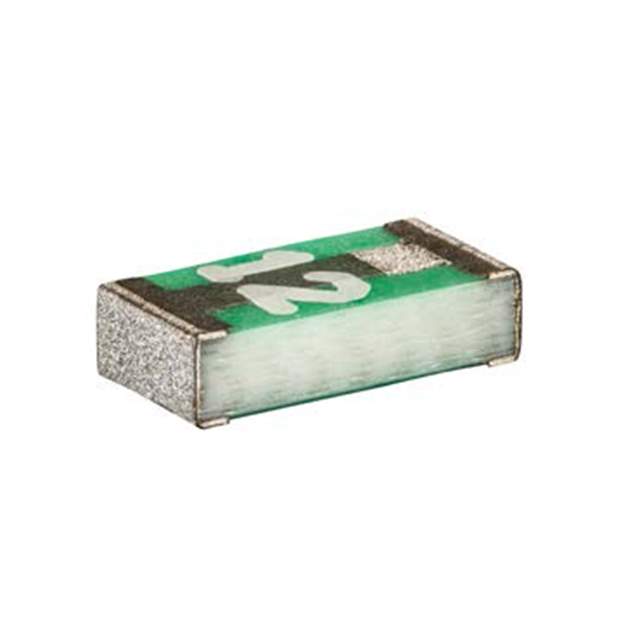

3413.0330.24 Real Image
Same model may have multiple batches, images only for reference.

3413.0330.24

Part No 3413.0330.24
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BOARD MNT 15A 32VAC 63VDC / 15 A 32 V AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Datasheet
3413.0330.24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr SCHURTER Inc.
Series UST 1206
Package Tape & Reel
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 15 A
Voltage Rating - AC 32 V
Voltage Rating - DC 63 V
Response Time Slow Blow
Package / Case 1206 (3216 Metric)
Breaking Capacity @ Rated Voltage 100A
Melting I2t 65
Approval Agency cURus
Temperature Range - Operating -55°C ~ 90°C
Dimension 0.126" L x 0.063" W x 0.024" H (3.20mm x 1.60mm x 0.60mm)
DC Cold Resistance 0.00315 Ohms
Base Product Number 3413.0330
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Other Names ,486-3413.0330.24DKR,3413.0330.24-ND,486-3413.0330.24CT,486-3413.0330.24TR
Standard Package 5,000
Win Source Part Number 958985-3413.0330.24
Ultra Librarian 3D Model Ultra Librarian 3413.0330.24 CAD Model

Description

The SCHURTER UST 1206 is a high-quality fuse that is commonly used in electronic devices. This fuse comes in a tape and reel package and can be mounted through an SMD style.

  • Package: Tape and Reel
  • Mounting Style: SMD
  • Response Time: Slow Blow
  • Breaking Capacity: 100A @ 63V DC
  • Melting I2t: 65
  • DC Cold Resistance: 0.00315 Ohms
  • Operating Temperature Range: -55°C to 90°C
  • Current Rating: 15A
  • Supply and Demand Status: Limited
  • Standard Package: 5,000
  • Manufacturer: SCHURTER
