Same model may have multiple batches, images only for reference.

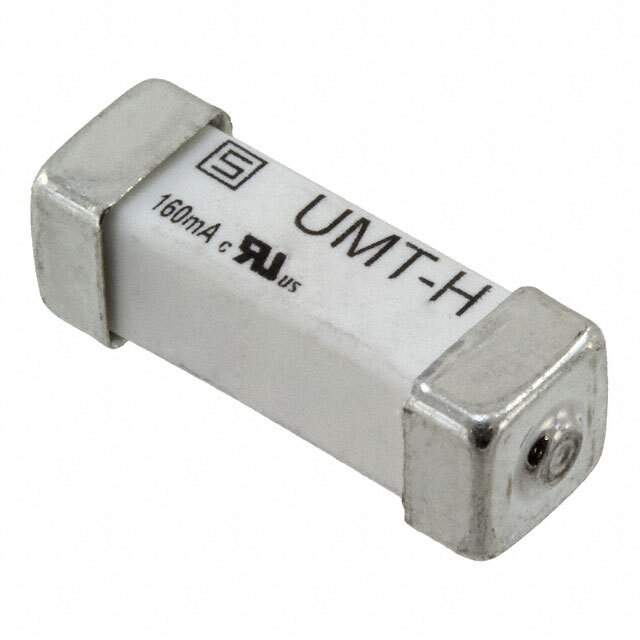

3403.0284.11 Real Image
Same model may have multiple batches, images only for reference.

3403.0284.11

Part No 3403.0284.11
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BRD MNT 10A 250VAC/125VDC / 10 A 250 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Datasheet
3403.0284.11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr SCHURTER Inc.
Series UMT-H
Package Strip
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 10 A
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Response Time Slow Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 1.5kA
Melting I2t 198
Approval Agency CQC, cURus, VDE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.606" L x 0.211" W x 0.211" H (15.40mm x 5.35mm x 5.35mm)
Base Product Number 3403.0284
MSL Level Vendor Undefined
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.10.0040
Other Names 486-3285
Standard Package 100
Win Source Part Number 1031427-3403.0284.11
Ultra Librarian 3D Model Ultra Librarian 3403.0284.11 CAD Model

Description

The UMT-H series from SCHURTER Inc. is a board mount fuse designed for circuit protection.

  • Manufacturer: SCHURTER Inc.
  • Series: UMT-H
  • Fuse Type: Board Mount
  • Voltage Rating: 250 V AC and 125 V DC
  • Response Time: Slow Blow
  • Package: 2-SMD square end block
  • Operating Temperature Range: -55°C to 125°C
  • Current Rating: 10 A
  • Breaking Capacity: 1.5kA @ rated voltage
  • Popularity: Medium
  • Status: Limited supply and demand
  • Part Number: 1031427-3403.0284.11
