Same model may have multiple batches, images only for reference.

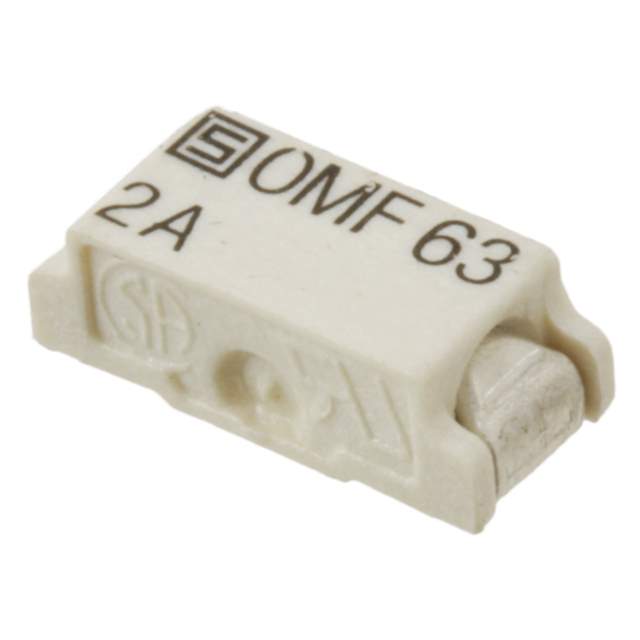

3402.0012.24 Real Image
Same model may have multiple batches, images only for reference.

3402.0012.24

Part No 3402.0012.24
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BOARD MNT 2A 63VAC/VDC SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Schurter Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 2A
Voltage Rating - AC 63V
Voltage Rating - DC 63V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 50A
Nominal Melting - I2t 0.44
Approvals cURus
Temperature Range - Operating -55°C to 125°C
Dimension 0.291" L x 0.122" W x 0.102" H (7.40mm x 3.10mm x 2.60mm)
Win Source Part Number 197653-3402.0012.24
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 3402.0012.24 CAD Model

Description

Product Description

Designed for efficiency and reliability, the 3402.0012.24 is a versatile electronic component tailored for complex technical systems. It offers unparalleled stability and adaptability, making it a popular choice for developers.

Applications

  • Smart Home Solutions
  • Automated Testing Equipment
  • Power Management Systems
  • Data Processing Units

Features and Benefits

  • Smart Operation: Features intelligent design elements for advanced functionality.
  • Scalable Integration: Easily expands as your projects grow in scope.
  • Environmental Resilience: Performs reliably in variable environmental conditions.

Additional Details

This component is well-suited for integration into high-stakes and scalable projects, supporting complex system demands efficiently.
