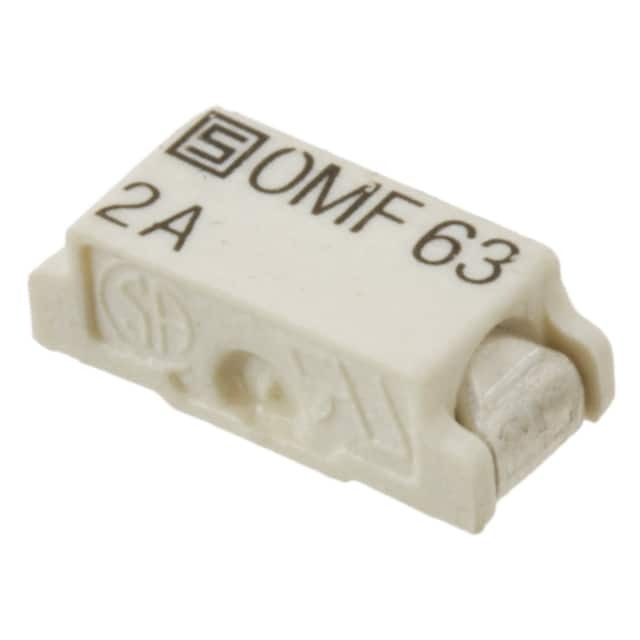

3402.0012.11
Same model may have multiple batches, images only for reference.

3402.0012.11

Part No 3402.0012.11
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BRD MNT 2A 63VAC 63VDC 2SMD
Datasheet
3402.0012.11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr SCHURTER Inc.
Series OMF 63
Package Bulk
Product Status Active
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 2 A
Voltage Rating - AC 63 V
Voltage Rating - DC 63 V
Response Time Fast Blow
Package / Case 2-SMD, J-Lead
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.44
Approval Agency cURus
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.291" L x 0.122" W x 0.102" H (7.40mm x 3.10mm x 2.60mm)
Base Product Number 3402.0012
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 855755-3402.0012.11
Ultra Librarian 3D Model Ultra Librarian 3402.0012.11 CAD Model

Description

The 3402.0012.11 is a fast blow fuse from the OMF 63 series, manufactured by SCHURTER Inc.

  • Series: OMF 63
  • Voltage Rating: 63V AC / 63V DC
  • Breaking Capacity: 50A
  • Melting I2t: 0.44
  • Packaging: Bulk
  • Standard Package: 100 pieces
  • Size: 0.291" L x 0.122" W x 0.102" H (7.40mm x 3.10mm x 2.60mm)
  • Mounting Type: Surface Mount
  • Operating Temperature: -55°C to 125°C
