Same model may have multiple batches, images only for reference.

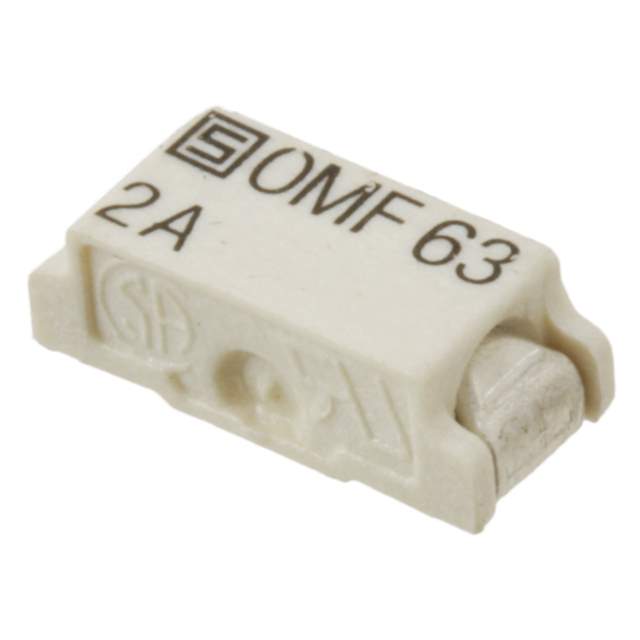

3402.0010.24 Real Image
Same model may have multiple batches, images only for reference.

3402.0010.24

Part No 3402.0010.24
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 1.25A 63VAC/VDC / 1.25 A 63 V AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, J-Lead
Datasheet
3402.0010.24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr SCHURTER Inc.
Series OMF 63
Package Tape & Reel (TR)
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 1.25 A
Voltage Rating - AC 63 V
Voltage Rating - DC 63 V
Response Time Fast Blow
Package / Case 2-SMD, J-Lead
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.14
Approval Agency cURus
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.291" L x 0.122" W x 0.102" H (7.40mm x 3.10mm x 2.60mm)
Base Product Number 3402.0010
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Standard Package 3,000
Win Source Part Number 1083147-3402.0010.24
Ultra Librarian 3D Model Ultra Librarian 3402.0010.24 CAD Model

Description

The OMF 63 fuse is a board mount type with a fast blow response time.

  • Manufacturer: SCHURTER Inc.
  • Fuse Type: Board Mount
  • Response Time: Fast Blow
  • Voltage Rating: 63V AC and DC
  • Breaking Capacity: 50A @ rated voltage
  • Mounting: SMD (SMT)
  • Package: Tape and Reel
  • Standard Package: 3,000
  • Package/Case: 2-SMD, J-Lead
  • Temperature Range: -55°C ~ 125°C
  • Dimension: 0.291" L x 0.122" W x 0.102" H (7.40mm x 3.10mm x 2.60mm)
