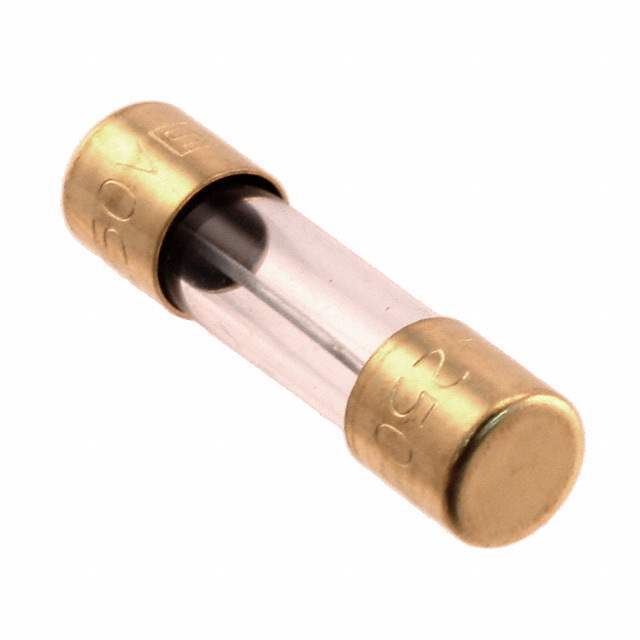

0034.5624.11 SCHURTER Inc.
Same model may have multiple batches, images only for reference.

0034.5624.11

Part No 0034.5624.11
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE GLASS 5A 250VAC 5X20MM
Datasheet
0034.5624.11 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer SCHURTER Inc.
Packaging Bulk
Part Status Active
Mounting Type Requires Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 5 A
Voltage Rating - AC 250 V
Response Time Slow Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 50A
Melting I²t 102.0
Ultra Librarian 3D Model Ultra Librarian 0034.5624.11 CAD Model

Description

ā— Directly solderable on printed circuit boards

ā— L = Low Breaking Capacity

ā— For rated current 1 A to 16 A, SMD-SPT is recommended
