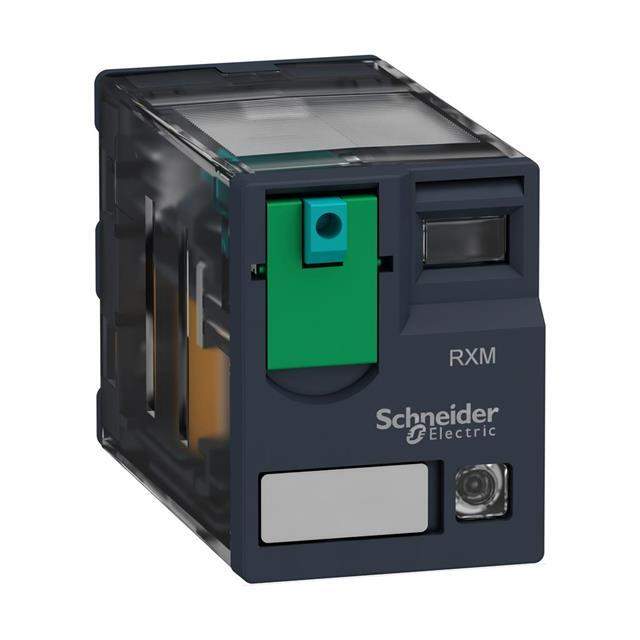

RXM4AB2BD Real Image
Same model may have multiple batches, images only for reference.

RXM4AB2BD

Part No RXM4AB2BD
Manufacturer Schneider Electric
Catalog Power Relays, Over 2 Amps
Description HARMONY, MINIATURE PLUG-IN RELAY / General Purpose Relay 4PDT (4 Form C) 24VDC Coil Socketable
Datasheet
RXM4AB2BD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Schneider Electric
Series Harmony
Package Box
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form 4PDT (4 Form C)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 28VDC - Max
Coil Current 36.9 mA
Coil Type Non Latching
Features Lighted Indicator, Test Button
Termination Style Plug In
Must Operate Voltage 19.2 VDC
Must Release Voltage 2.4 VDC
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -40°C ~ 55°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 650 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names 4008-RXM4AB2BD
Standard Package 1
Win Source Part Number 1089464-RXM4AB2BD
Ultra Librarian 3D Model Ultra Librarian RXM4AB2BD CAD Model

Description

The Schneider Electric Harmony series offers the RXM4AB2BD, a 4PDT power relay with a coil voltage of 24VDC. RXM4AB2BD manufactured by Schneider Electric.

  • Contact Form: 4PDT
  • Coil Voltage: 24VDC
  • Contact Rating: 5A
  • Switching Voltage: Up to 250VAC or 28VDC
  • Termination Style: Plug-In
  • Package: Box
  • Features: Lighted Indicator, Test Button
  • Coil Type: Non-Latching
  • Coil Resistance: 650-ohm
  • Operating Temperature: -40°C to 55°C
  • Release and Operate Time: 20ms
