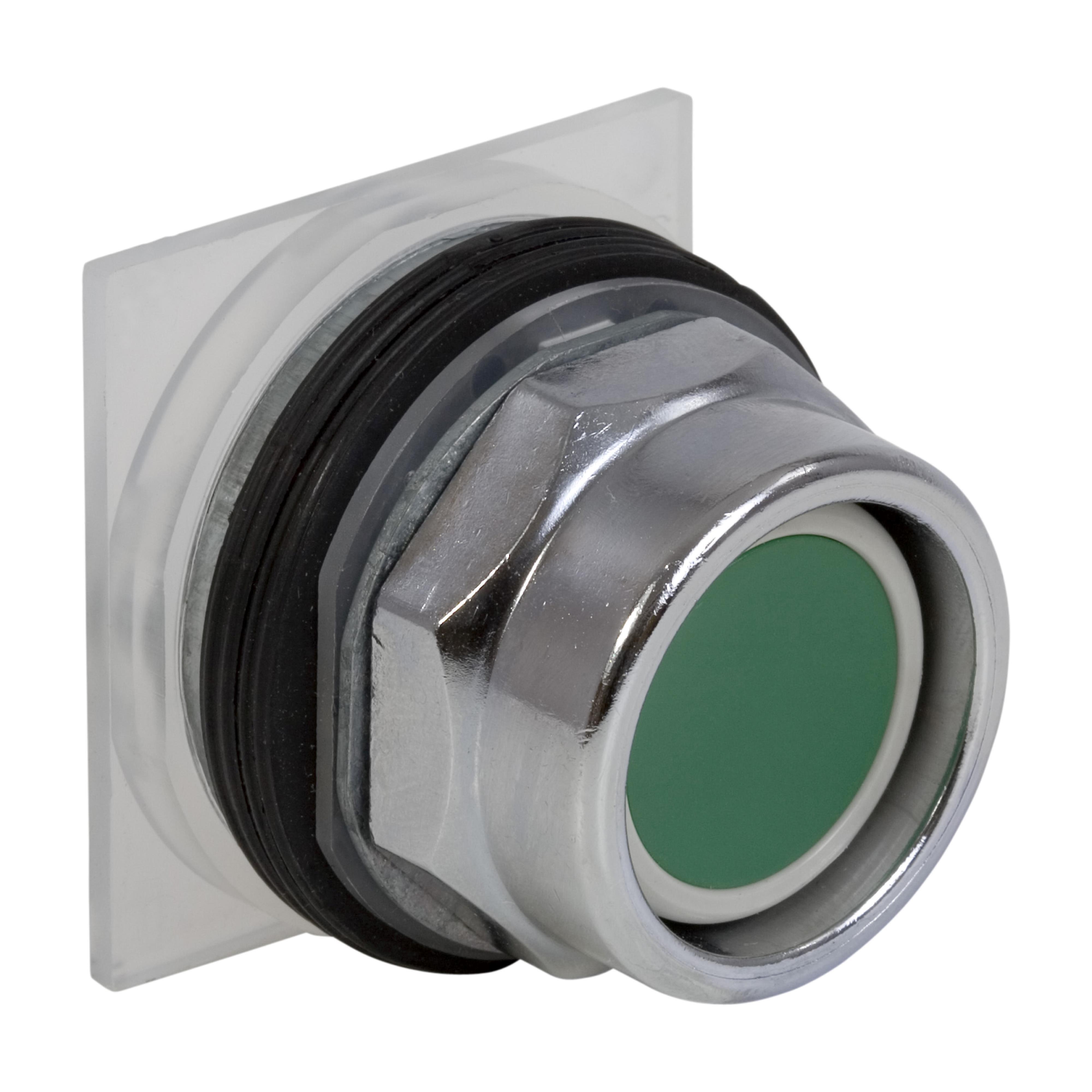

9001KR1BH13

Part No 9001KR1BH13
Manufacturer Schneider Electric
Catalog Pushbutton Switches
Description 30MM PUSH BUTTON, TYPE K, PUSH B
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Panel Mount, Front
Type Standard
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 3A (AC), 550mA (DC)
Voltage Rating - AC 240 V
Voltage Rating - DC 125 V
Actuator Type Round, Button, Flush
Color - Actuator/Cap Black
Termination Style Screw Terminal
Ingress Protection IP66 - Dust Tight, Oil and Water Resistant
Panel Cutout Dimensions Circular - 30.00mm Dia
Temperature Range - Operating -25°C ~ 70°C
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1556402-9001KR1BH13
Ultra Librarian 3D Model Ultra Librarian 9001KR1BH13 CAD Model
