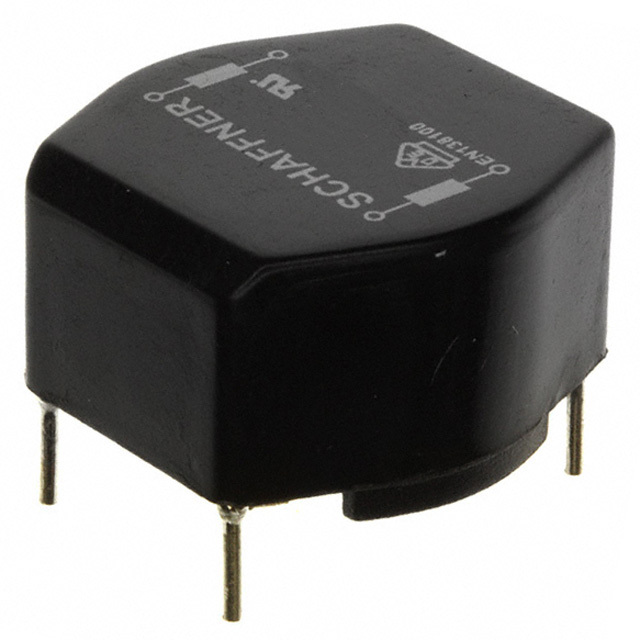

RN114-4/02 Schaffner EMC Inc.
Same model may have multiple batches, images only for reference.

RN114-4/02

Part No RN114-4/02
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description Common Mode Choke Through Hole Power Line 4A (Typ) 2 Lines 35 mOhm (Typ) -40°C ~ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters
Family Common Mode Chokes
Manufacturer Schaffner-EMC-Inc.
Series RN
Packaging Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.5mH @ 1kHz
Current Rating (Max) 4A (Typ)
DC Resistance (DCR) (Max) 35 mOhm (Typ)
Voltage Rating - AC 250V
Operating Temperature Range -40°C ~ 125°C
Approvals UR, VDE
Mounting Style Through Hole
Size / Dimension 0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max) 0.531" (13.50mm)
Package Horizontal, 4 PC Pin
Win Source Part Number 210831-RN114-4/02
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Signal Processing, Portable Devices, Consumer Electronics
Ultra Librarian 3D Model Ultra Librarian RN114-4/02 CAD Model

Description

The Schaffner-EMC-Inc. RN Common Mode Choke is a power line filter designed for signal processing, portable devices, and consumer electronics.

  • Voltage Rating: 250V AC
  • Current Rating: 4A (Typ)
  • Operating Temperature Range: -40°C to 125°C
  • Package: Horizontal, 4 PC Pin
  • Size: 0.886" L x 0.846" W (22.50mm x 21.50mm)
  • Height: 0.531" (13.50mm)
  • Lines: Two
  • Inductance: 1.5mH @ 1kHz
  • DC Resistance (DCR): 35 mOhm (Typ)
  • Approvals: UR and VDE
