Same model may have multiple batches, images only for reference.

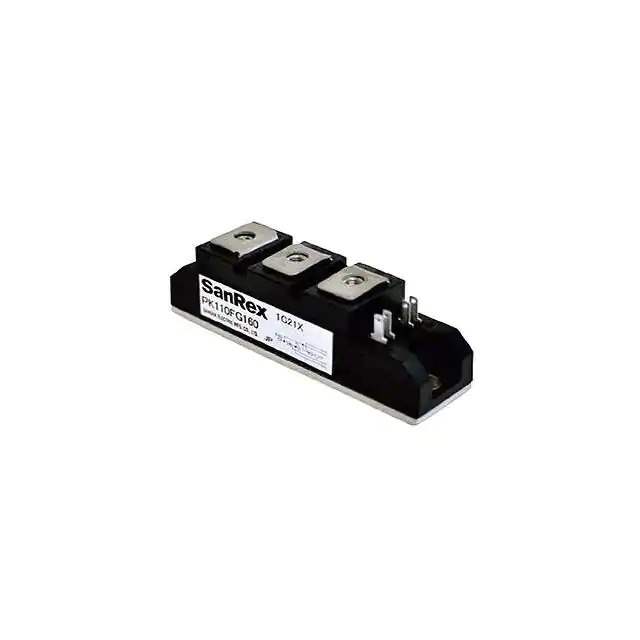

PK70FG160 Real Image
Same model may have multiple batches, images only for reference.

PK70FG160

Part No PK70FG160
Manufacturer SanRex Corporation
Catalog TVS - Thyristors
Description THYRISTOR MODULE 1600V 70A
Datasheet
PK70FG160 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs - Modules
Mfr SanRex Corporation
Package Tray
Product Status Active
Structure Series Connection - All SCRs
Number of SCRs, Diodes 2 SCRs
Voltage - Off State 1.6 kV
Current - On State (It (AV)) (Max) 70 A
Current - On State (It (RMS)) (Max) 110 A
Voltage - Gate Trigger (Vgt) (Max) 3 V
Current - Gate Trigger (Igt) (Max) 50 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 1460A, 1600A
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.30.0040
Win Source Part Number 655895-PK70FG160
Ultra Librarian 3D Model Ultra Librarian PK70FG160 CAD Model

Description

The 655895-PK70FG160 is a thyristor module used in discrete semiconductor products.

  • Category: Thyristors - SCRs (silicon-controlled rectifiers) - modules
  • Off-State Voltage: 1.6 kV
  • Gate Trigger Voltage: 3 V
  • Maximum Gate Trigger Current: 50 mA
  • Maximum On-State Current: 70 A
  • SCRs: 2 (connected in series)
  • Mounting: Chassis
  • Package Type: Tray
  • Operating Temperature: -40°C to 125°C
  • ECCN Code: EAR99
  • HTSUS Code: 8541.30.0040
