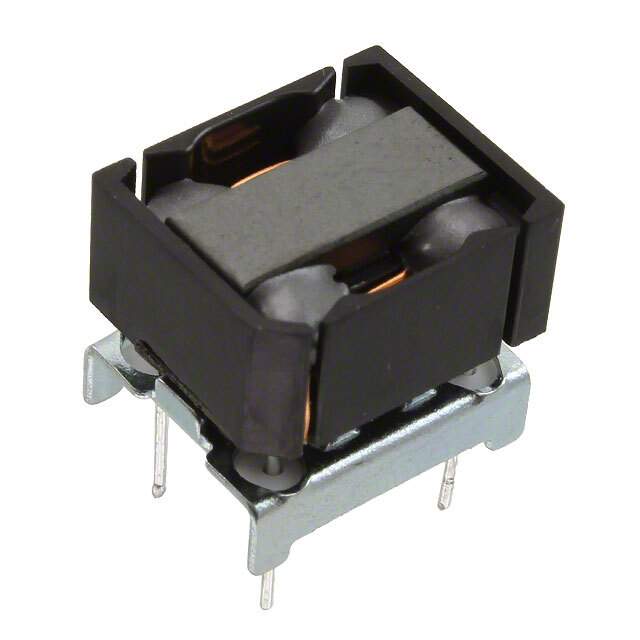

Same model may have multiple batches, images only for reference.

SI-8401L

Name: SI-8401L
Brand: Sanken
SKU: 666906
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SI-8401L
Manufacturer	Sanken
Catalog	Power Supplies Board Mount DCDC Converters
Description	Separate Excitation Switching Type with Coil
Datasheet	SI-8401L Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Manufacturer	Sanken
Packaging	Box
Type	Non-Isolated PoL Module
Number of Outputs	1
Input Voltage MIN	7V
Voltage Input MAX	33V
Voltage - Output 1	5V
Current - Output (Maximum)	500mA
Applications	ITE (Commercial)
Features	OCP, OTP
Operating Temperature Range	-20°C ~ 85°C
Efficiency	80%
Mounting Style	Through Hole
Package	Module
Size	0.57" L x 0.47" W x 0.52" H (14.5mm x 12.0mm x 13.2mm)
Win Source Part Number	1249594-SI-8401L
Manufacturer Homepage	www.sanken-ele.co.jp/en
Popularity	Medium
Supply and Demand Status	Limited
Family Name	SI-8401L
Introduction Date	July 06, 1999
Country of Origin	Japan
Estimated EOL Date	Obsolete
Ultra Librarian 3D Model	Ultra Librarian SI-8401L CAD Model

Alternative Products

Description

The Sanken SI-8401L is a non-isolated PoL module with a 5V output voltage and a maximum output current of 500mA.

Output Voltage: 5V
Maximum Output Current: 500mA
Type: Non-isolated PoL module
Mounting: Through-hole
Package: Module
Dimensions: 0.57" L x 0.47" W x 0.52" H (14.5mm x 12.0mm x 13.2mm)
Applications: ITE (Commercial)
Operating Temperature: -20°C to 85°C
Alternative Parts: SI-8401L-T, BR300
