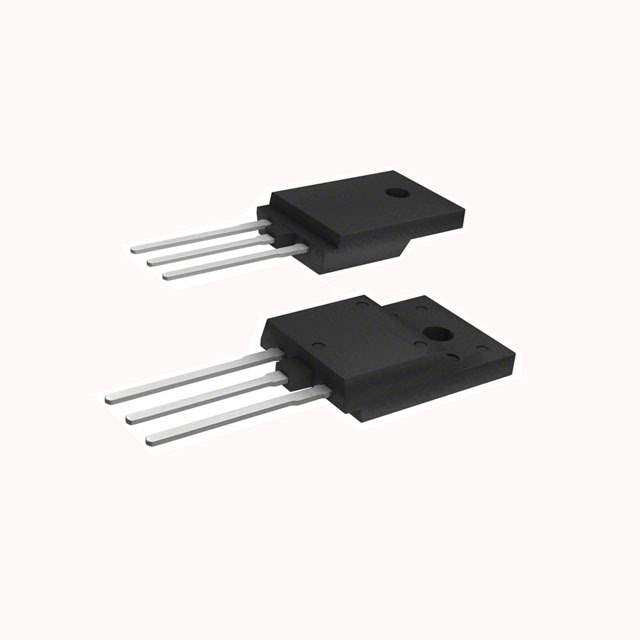

FMX-4202S Real Image
Same model may have multiple batches, images only for reference.

FMX-4202S

Part No FMX-4202S
Manufacturer Sanken
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 200V 20A TO3PF
Datasheet
FMX-4202S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Max) @ If 980mV @ 10A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 30ns
Current - Reverse Leakage @ Vr 200μA @ 200V
Operating Temperature - Junction -40°C to 150°C
Mounting Through Hole
Case / Package TO-3PF
Win Source Part Number 040316-FMX-4202S
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FMX-4202S CAD Model

Description

This through-hole diode is manufactured by Sanken with Win Source Part Number 040316-FMX-4202S and is packaged in bulk.

  • Diode Type: Standard
  • Maximum Voltage: 200V
  • Forward Voltage: 980mV at 10A
  • Reverse Recovery Time: 30ns
  • Reverse Current Leakage: 200μA at 200V
  • Junction Temperature: -40°C to 150°C
  • Diode Configuration: 1 Pair Common Cathode
  • Average Rectified Current: 20A
  • Speed Frequency: Fast Recovery = 200mA (Io)
  • Supply and demand status is balanced.
