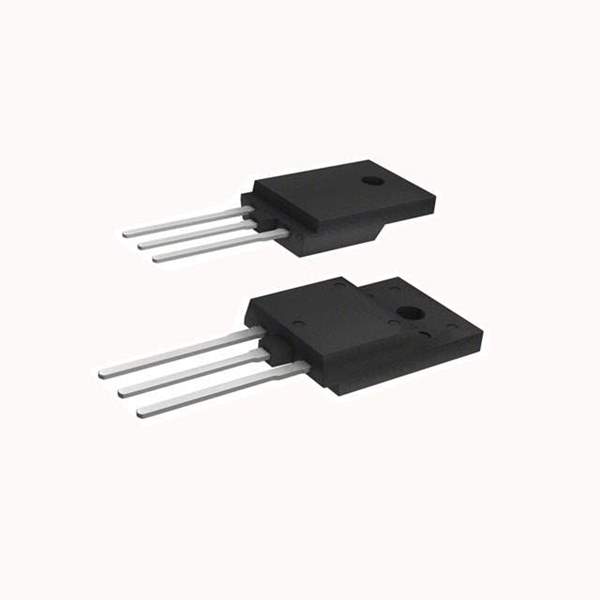

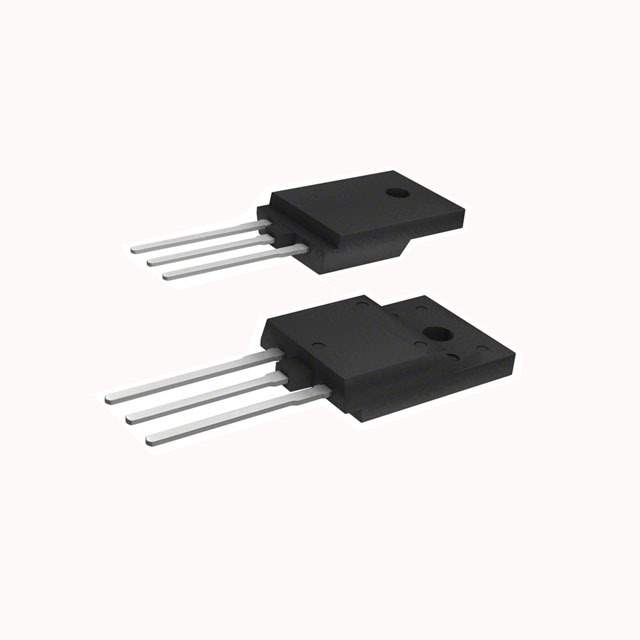

2SC5100 Real Image1 2SC5100 Real Image2
Same model may have multiple batches, images only for reference.
2SC5100 Real Image1 2SC5100 Real Image2
2SC5100 Real Image1 2SC5100 Real Image2
Same model may have multiple batches, images only for reference.

2SC5100

Part No 2SC5100
Manufacturer Sanken
Catalog Transistors (BJT) - Single
Description TRANS NPN 120V 8A TO3PF
Datasheet
2SC5100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Transistor Type NPN
Current - Collector (Ic) (Maximum) 8A
Voltage - Collector Emitter Breakdown (Maximum) 120V
Vce Saturation (Maximum) @ Ib, Ic 500mV @ 300mA, 3A
Current - Collector Cutoff (Maximum) 10μA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 50 @ 3A, 4V
Power - Max 75W
Frequency - Transition 20MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TO-3P-3 Full Pack
Win Source Part Number 762697-2SC5100
Family Name 2SC5100
Introduction Date June 18, 2001
ECCN EAR99
Estimated EOL Date 2024
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2SC5100 CAD Model

Description

The Sanken 2SC5100 is a high power NPN transistor with a maximum power rating of 75W.

  • Frequency Transition: 20MHz
  • Collector Current (Ic) Maximum: 8A
  • Voltage Breakdown: 120V
  • DC Current Gain (hFE) Minimum: 50 @ 3A and 4V
  • Package: TO-3P-3 full pack
  • Current Cutoff Maximum: 10μA (ICBO)
  • Vce Saturation Maximum: 500mV @ 300mA, 3A
  • Popularity: Medium
  • EOL Date: 2024
