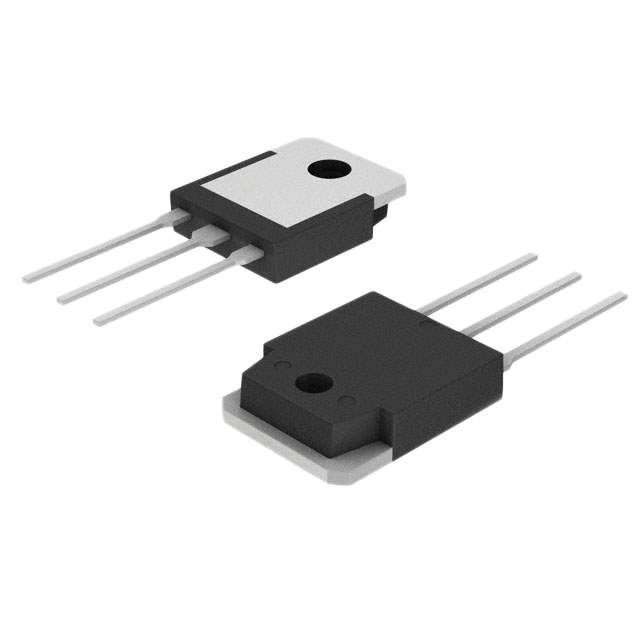

2SC4301 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Transistor Type NPN
Current - Collector (Ic) (Maximum) 7A
Voltage - Collector Emitter Breakdown (Maximum) 800V
Vce Saturation (Maximum) @ Ib, Ic 500mV @ 600mA, 3A
Current - Collector Cutoff (Maximum) 100μA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 10 @ 3A, 4V
Power - Max 80W
Frequency - Transition 6MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TO-3P-3 Full Pack
Manufacturer Package TO-3PF
RoHS State Request Verification
Win Source Part Number 1125665-2SC4301
Manufacturer Homepage www.sanken-ele.co.jp/en
Popularity Medium
Supply and Demand Status Limited
Family Name 2SC4301
Introduction Date June 18, 2001
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian 2SC4301 CAD Model

Description

The 2SC4301 manufactured by Sanken is a discrete semiconductor product that is an NPN transistor type. Bold the product name (e.g., BAV99S,135 → 2SC4301) and manufacturer (e.g., Nexperia USA Inc. → Sanken).

  • Product Type: Discrete Semiconductor
  • Transistor Type: NPN
  • Power-Max: 80W
  • Frequency-Transition: 6MHz
  • Package: TO-3P-3 Full Pack
  • Mounting Style: Through-Hole
  • Current-Collector (Ic) (Maximum): 7A
  • Voltage-Collector Emitter Breakdown (Maximum): 800V
  • DC Current Gain (hFE) (Minimum) @ Ic, Vce: 10 @ 3A, 4V
