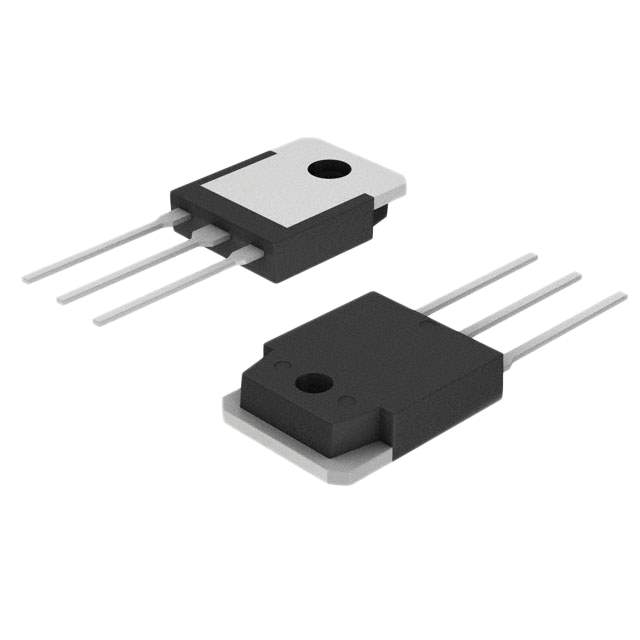

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Transistor Type NPN
Current - Collector (Ic) (Maximum) 14A
Voltage - Collector Emitter Breakdown (Maximum) 150V
Vce Saturation (Maximum) @ Ib, Ic 2V @ 500mA, 5A
Current - Collector Cutoff (Maximum) 100μA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 50 @ 5A, 4V
Power - Max 125W
Frequency - Transition 60MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TO-3P-3, SC-65-3
Manufacturer Package TO-3P
RoHS State Request Verification
Win Source Part Number 1125382-2SC3284
Manufacturer Homepage www.sanken-ele.co.jp/en
Popularity Medium
Supply and Demand Status Limited
Family Name 2SC3284
Introduction Date July 07, 1999
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian 2SC3284 CAD Model

Description

The 2SC3284 is an NPN transistor from Sanken.

  • Maximum Collector-Emitter Voltage: 150V
  • Maximum Collector Current: 14A
  • Frequency Transition: 60MHz
  • Power Dissipation: Up to 125W
  • Package: TO-3P
  • Operating Temperature: Up to 150°C
  • DC Current Gain: 50 @ 5A and 4V
  • Applications: High-power applications
  • Alternative Parts: 2STC4468, 2SD1047D-E, and 2SD1047PD
