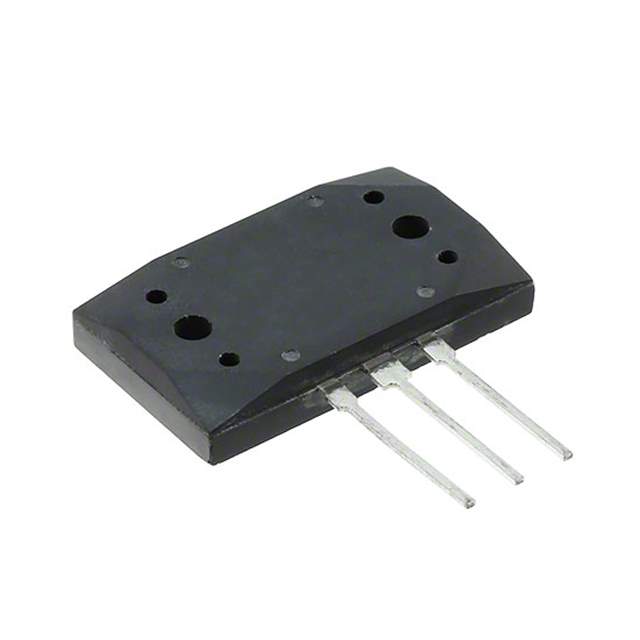

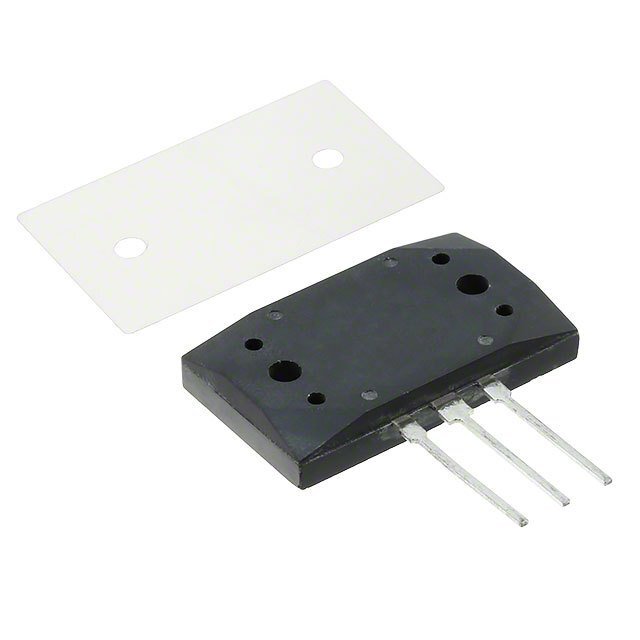

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Sanken
Packaging Bulk
Status Obsolete
Transistor Type NPN
Current - Collector (Ic) (Maximum) 17A
Voltage - Collector Emitter Breakdown (Maximum) 180V
Vce Saturation (Maximum) at Ib, Ic 2V at 800mA, 8A
Current - Collector Cutoff (Maximum) 100μA (ICBO)
DC Current Gain (hFE) (Minimum) at Ic, Vce 30 at 8V, 4V
Maximum Power 200W
Frequency - Transition 50MHz
Temperature Range - Operating 150°C
Mounting Style Through Hole
Manufacturer Package 3-ESIP
Supplier Device Package MT-200
Manufacturer Pack Quantity 250
MSL Level 1 (Unlimited)
Win Source Part Number 1125305-2SC2922
Manufacturer Homepage www.mospec.com.tw
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2SC2922 CAD Model

Description

The 2SC2922 is a high-power NPN transistor manufactured by Sanken.

  • Collector Current: Has a maximum collector current of 17 A.
  • Collector-Emitter Voltage: Has a maximum collector-emitter voltage of 180 V.
  • Application: Is ideal for use in power amplifiers, audio equipment, and other high-power applications.
  • Package: Packaged in a through-hole MT-200 package.
  • Popularity: Has a medium popularity with a limited supply and demand status.
