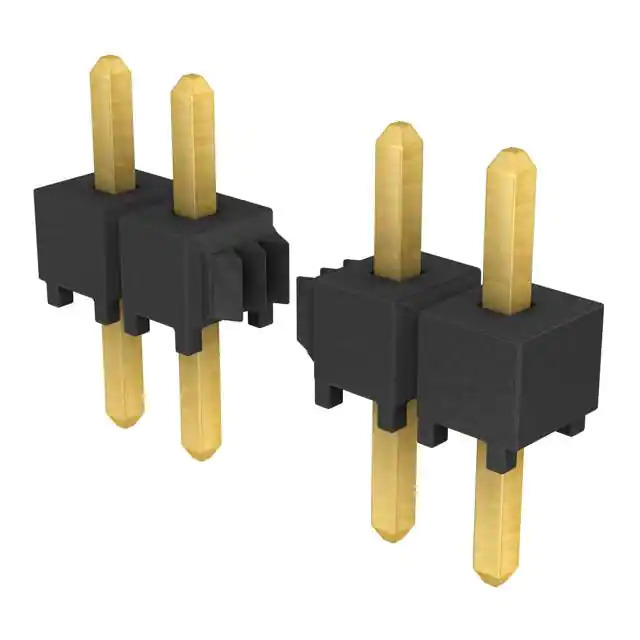

TSW-150-05-G-S

Name: TSW-150-05-G-S
Brand: Samtec Inc.
SKU: 1354285
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TSW-150-05-G-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 50POS 2.54MM / Connector Header Through Hole 50 position 0.100" (2.54mm)
Datasheet	TSW-150-05-G-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TSW
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	50
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.105" (2.67mm)
Contact Length - Post	0.130" (3.30mm)
Overall Contact Length	0.335" (8.51mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT)
Features	-
Temperature Range - Operating	-55°C ~ 125°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	-
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	3.00µin (0.076µm)
Applications	-
Base Product Number	TSW-150
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1354285-TSW-150-05-G-S
Ultra Librarian 3D Model	Ultra Librarian TSW-150-05-G-S CAD Model

Alternative Products

Description

The TSW-150-05-G-S is a male pin header connector manufactured by Samtec Inc.

Series: TSW
Connection Type: Board-to-Board or Cable
Package: Bulk
Mounting Type: Through Hole
Number of Positions: 50
Pitch: 0.100" (2.54mm)
Number of Rows: 1
Shrouding: Unshrouded
Mating Contact Length: 0.105" (2.67mm)
Post Contact Length: 0.130" (3.30mm)
Overall Contact Length: 0.335" (8.51mm)
Contact Material: Phosphor Bronze
Contact Finish: Gold
Insulation Material: Polybutylene Terephthalate (PBT)
Flammability Rating: UL94 V-0
Voltage Rating: Unspecified
Current Rating: Unspecified
