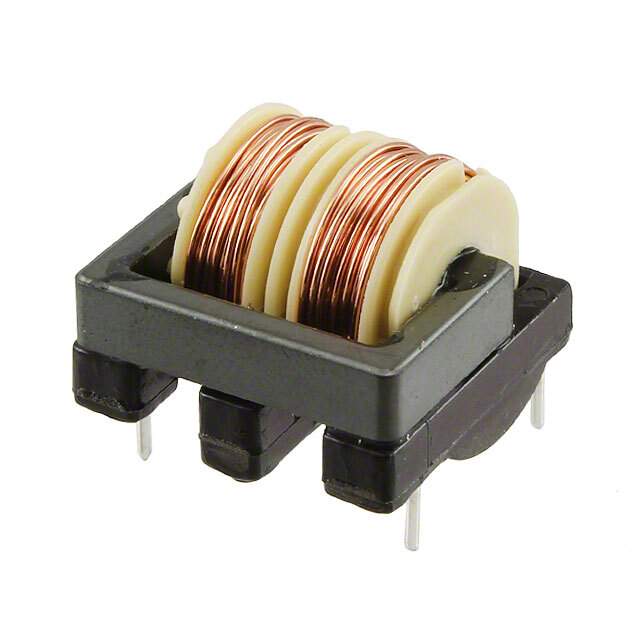

SSB11H-R13090 Real Image
Same model may have multiple batches, images only for reference.

SSB11H-R13090

Part No SSB11H-R13090
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 9 mH @ 1 kHz
Current Rating (Max) 1.3A
DC Resistance (DCR) (Max) 380mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 130°C
Mounting Type Through Hole
Dimension 0.831" L x 0.807" W (21.10mm x 20.50mm)
Height (Max) 0.669" (17.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSB11H
Other Names 399-10668,UALB11HR130900
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276740-SSB11H-R13090
Ultra Librarian 3D Model Ultra Librarian SSB11H-R13090 CAD Model

Description

The SS series common mode chokes from KEMET are an ideal solution for filtering power lines.

  • Maximum Voltage Rating: 250V AC
  • Current Rating: Up to 1.3A
  • Inductance: 9mH @ 1kHz
  • DC Resistance (DCR): 380mOhm
  • Mounting: Through-hole mounted
  • Package/Case: Vertical, 4 PC pin
  • Temperature Range: -25°C to 130°C
  • Height: 0.669" (17.00mm)
  • Dimension: 0.831" L x 0.807" W (21.10mm x 20.50mm)
  • REACH status: Unaffected
  • HTSUS: 8504.31.4065
  • Base Product Number: SSB11H
