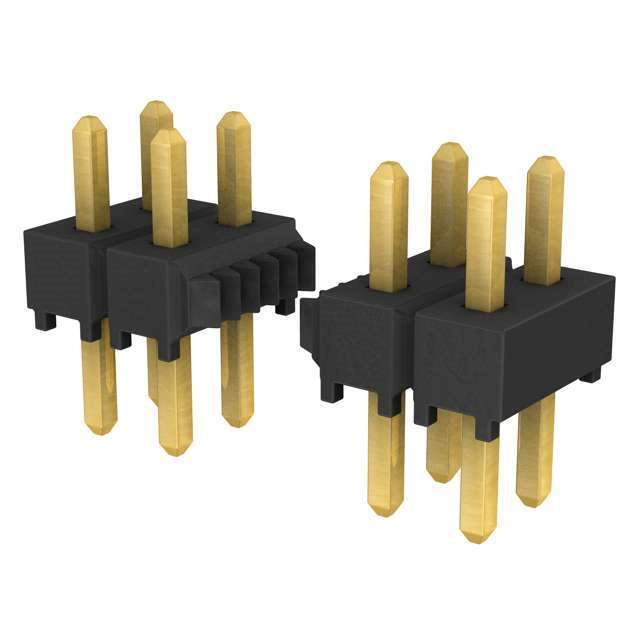

TSW-149-06-G-D

Name: TSW-149-06-G-D
Brand: Samtec Inc.
SKU: 1038856
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	TSW-149-06-G-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 98POS 2.54MM / Connector Header Through Hole 98 position 0.100" (2.54mm)
Datasheet	TSW-149-06-G-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TSW
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	98
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.105" (2.67mm)
Contact Length - Post	0.095" (2.41mm)
Overall Contact Length	0.300" (7.62mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	TSW-149
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM1020-49
Standard Package	1
Win Source Part Number	1038856-TSW-149-06-G-D
Ultra Librarian 3D Model	Ultra Librarian TSW-149-06-G-D CAD Model

Description

The Samtec Inc. TSW-149-06-G-D is a rectangular connector header that belongs to the Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins category.

Pitch: 2.54mm
Positions: 98
Package: Bulk
Mounting Type: Through-Hole
Contact Type: Male Pin
Contact Finish: Gold
Application: Board-to-Board or Cable
Supply and Demand Status: Limited
