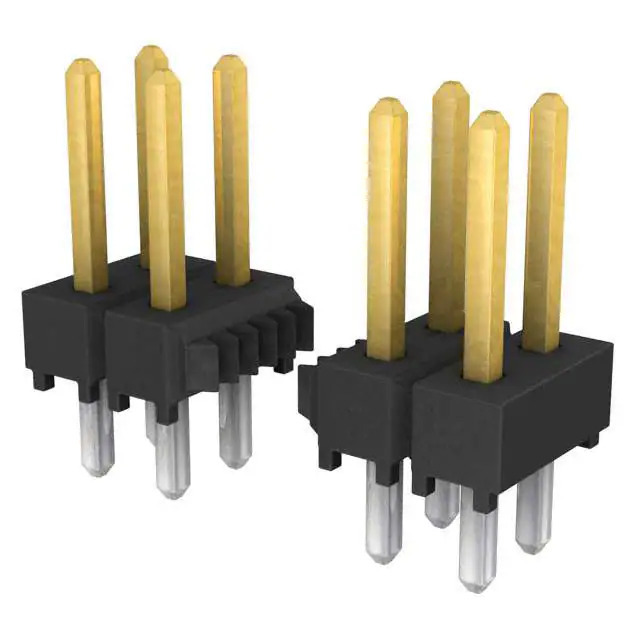

TSW-105-07-L-D

Name: TSW-105-07-L-D
Brand: Samtec Inc.
SKU: 1366060
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TSW-105-07-L-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 10POS 2.54MM
Datasheet	TSW-105-07-L-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TSW
Package	Bulk
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.100" (2.54mm)
Overall Contact Length	0.430" (10.92mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polybutylene Terephthalate (PBT)
Features	-
Temperature Range - Operating	-55°C ~ 125°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	-
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	-
Base Product Number	TSW-105
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1366060-TSW-105-07-L-D
Ultra Librarian 3D Model	Ultra Librarian TSW-105-07-L-D CAD Model

Description

The Samtec Inc. TSW-105 header is a reliable and versatile connector that is commonly used in electronic devices.

Manufacturer: Samtec Inc.
Product Name: TSW-105
Temperature Range: -55°C to 125°C
Mounting Type: Through Hole
Number of Positions: 10
Number of Rows: 2
Pitch: 0.100" (2.54mm)
Contact Finish: Gold
Flammability Rating: UL94 V-0
Insulation Color: Black
Insulation Material: Polybutylene Terephthalate (PBT)
