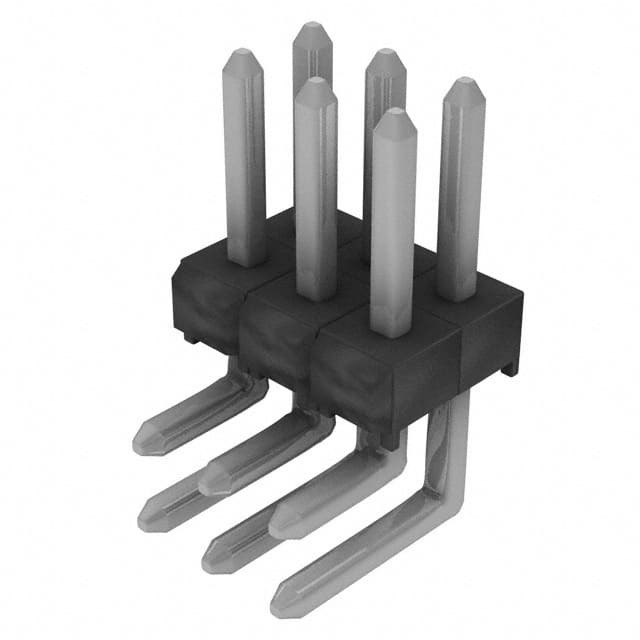

TSW-103-08-T-D-RA
Same model may have multiple batches, images only for reference.

TSW-103-08-T-D-RA

Part No TSW-103-08-T-D-RA
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER R/A 6POS 2.54MM / Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm)
Datasheet
TSW-103-08-T-D-RA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series TSW
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 6
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.090" (2.29mm)
Insulation Height 0.219" (5.56mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polybutylene Terephthalate (PBT)
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number TSW-103
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 937832-TSW-103-08-T-D-RA
Ultra Librarian 3D Model Ultra Librarian TSW-103-08-T-D-RA CAD Model

Description

The TSW series is a versatile range of rectangular connectors designed for various applications in the electronics industry. The TSW-103-08-T-D-RA is a header connector with 6 male pin contacts arranged in a 2-row configuration.

  • Number of Contacts: 6
  • Contact Gender: Male Pin
  • Number of Rows: 2
  • Fastening Type: Push-Pull
  • Mounting Type: Right-Angle
  • Contact Material: Phosphor Bronze
  • Contact Finish Mating: Tin
  • Contact Finish Post: Tin
  • Shrouding: Unshrouded
  • Temperature Range: -55°C to 105°C
  • Application: Board-to-Board or Cable
  • Package: Bulk, 1 piece
