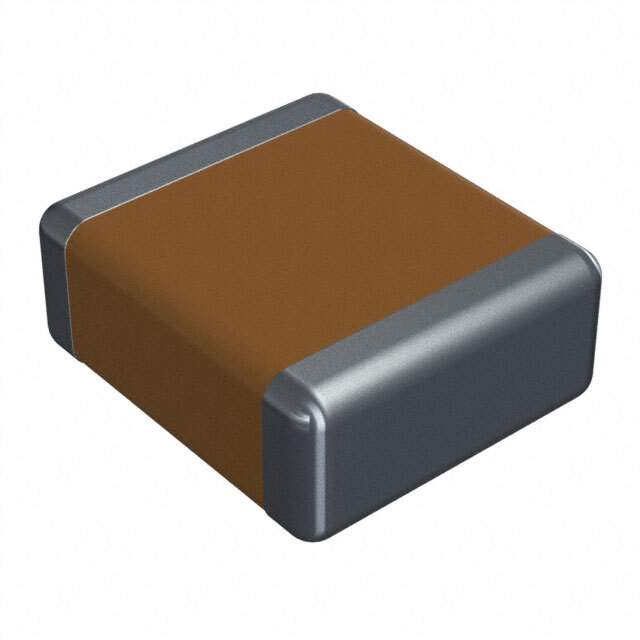

The 22201C105KAT1A is a ceramic capacitor manufactured by AVX Corporation. This capacitor is designed for various electronic applications where stable capacitance and reliable performance are crucial.

Applications

• Power Supplies
• Consumer Electronics
• Industrial Equipment
• Automotive Systems
• Medical Devices

Features

• High capacitance value (1.0 µF)
• Voltage rating of 16 V
• X7R dielectric material
• Surface mount (SMD) package
• Operating temperature range: -55°C to +125°C

Benefits

• Stable capacitance over temperature variations
• Low equivalent series resistance (ESR)
• High reliability
• Compact size for high-density circuit designs
• Suitable for reflow soldering

Technical Specifications

The 22201C105KAT1A is a 2220-sized (22 mils x 20 mils) surface-mount ceramic capacitor. The X7R dielectric offers a capacitance variation of ±15% over its operating temperature range. The capacitor is non-polarized, simplifying circuit integration. The part is RoHS compliant.

This capacitor is commonly used for decoupling, bypass, and filtering applications. Its high capacitance and voltage rating make it suitable for both general-purpose and demanding applications. The X7R dielectric ensures that the capacitance remains relatively stable even with changes in voltage, frequency, and temperature, providing consistent performance within specified operating conditions.
