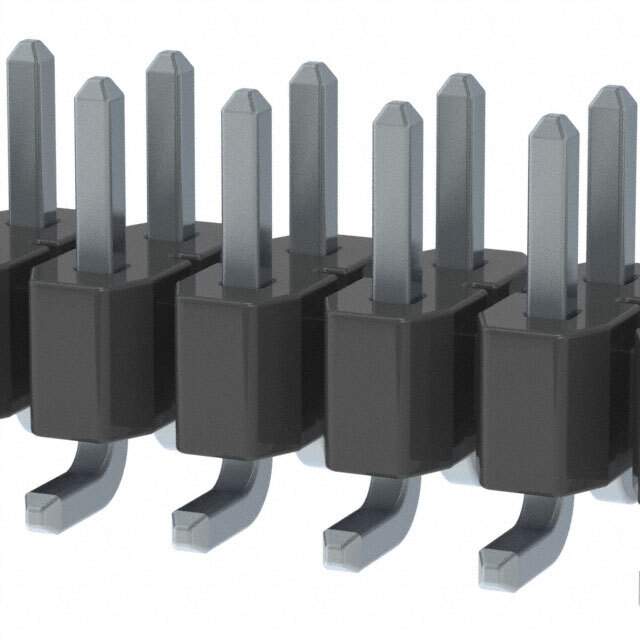

TSM-111-04-T-DV

Name: TSM-111-04-T-DV
Brand: Samtec Inc.
SKU: 1163837
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TSM-111-04-T-DV
Manufacturer	Samtec Inc.
Catalog	Circular Connectors - Housings
Description	CONN HEADER SMD 22POS 2.54MM / Connector Header Surface Mount 22 position 0.100" (2.54mm)
Datasheet	TSM-111-04-T-DV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TSM
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	22
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	TSM-111
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	20
Win Source Part Number	1163837-TSM-111-04-T-DV
Ultra Librarian 3D Model	Ultra Librarian TSM-111-04-T-DV CAD Model

Alternative Products

Description

The TSM series header is a high-quality male pin connector designed for board-to-board or cable applications.

Series: TSM
Positions: 22
Rows: Two
Pitch: 0.100” (2.54mm)
Mating Contact Finish: Tin
Unshrouded: Yes
Row Spacing: 0.100” (2.54mm)
Contact Shape: Square
Contact Length for Mating: 0.120” (3.05mm)
Insulation Height: 0.100” (2.54mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Package: Tube
Standard Package: 20
Temperature Range: -55°C to 105°C
