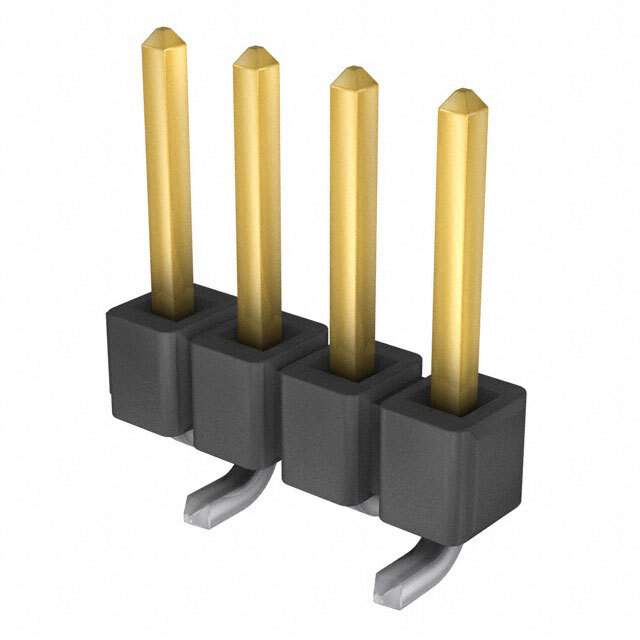

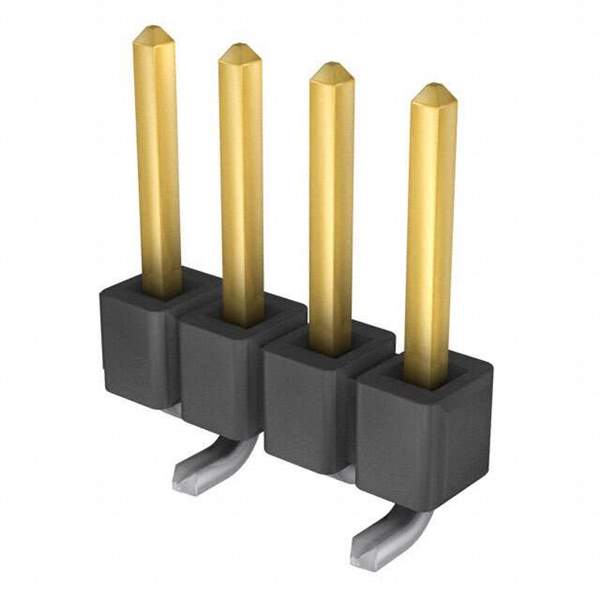

TSM-104-01-S-SV-P-TR Real Image
Same model may have multiple batches, images only for reference.

TSM-104-01-S-SV-P-TR

Part No TSM-104-01-S-SV-P-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER 4POS .100" SNGL SMD / Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Top Entry SMD T/R
Datasheet
TSM-104-01-S-SV-P-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Series TSM
Packaging Reel package
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Board or Cable
Shrouding Unshrouded
Number of Positions 4
Number of Positions Loaded All
Number of Rows 1
Mounting SMD
Termination Solder
Contact Length - Mating 0.230" (5.84mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30μin (0.76μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Pick and Place
Operating Temperature Range -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Win Source Part Number 798491-TSM-104-01-S-SV-P-TR
Popularity Medium
Supply and Demand Status Limited
Family Name TSM
Introduction Date January 07, 1995
ECCN EAR99
Country of Origin China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian TSM-104-01-S-SV-P-TR CAD Model

Description

The TSM-104-01-S-SV-P-TR is a header connector type electronic component manufactured by Samtec Inc.

  • Pick and Place: Yes
  • Mounting: Surface mount
  • Contact Type: Male pin
  • Positions: 4
  • Shrouding: Unshrouded
  • Series: TSM
  • Package Type: Reel package
  • Pitch Mating: 0.100" (2.54mm)
  • Contact Finish-Mating: Gold
  • Contact Finish Thickness-Mating: 30μin (0.76μm)
  • Contact Finish-Post: Tin
  • Supply and Demand Status: Limited
  • Operating Temperature: -55°C to 125°C
  • Insulation Material: Liquid crystal polymer (LCP)
  • Insulation Color: Black
  • Estimated EOL Date: 2027
  • ECCN: EAR99
  • Halogen Free: Yes
  • Manufacturing Locations: China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, and Vietnam
