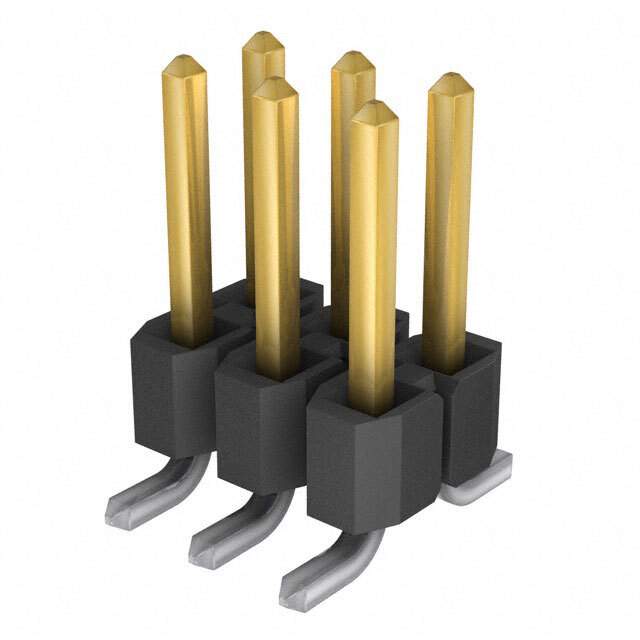

TSM-103-01-S-DV

Name: TSM-103-01-S-DV
Brand: Samtec Inc.
SKU: 813557
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TSM-103-01-S-DV
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 6POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Samtec Inc.
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Style	SMD
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0μin (0.76μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Manufacturer Pack Quantity	76
MSL Level	1 (Unlimited)
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	813560-TSM-103-01-S-DV
Ultra Librarian 3D Model	Ultra Librarian TSM-103-01-S-DV CAD Model

Description

The Samtec Inc. 813560-TSM-103-01-S-DV header connector is a push-pull style connector.

Contact Type: Male pin
Voltage Rating: -
Flammability Rating: UL94 V-0
Contact Material: Phosphor bronze
Insulation Material: Liquid crystal polymer (LCP)
Pitch-Mating: 0.100" (2.54mm)
Row Spacing-Mating: 0.100" (2.54mm)
Contact Finish-Mating: Gold (30.0μin (0.76μm))
Contact Finish-Post: Tin
Shrouding: Unshrouded
Contact Shape: Square
Applications: Board to board, cable
Termination: Solder
Temperature Range: -55°C to 125°C
