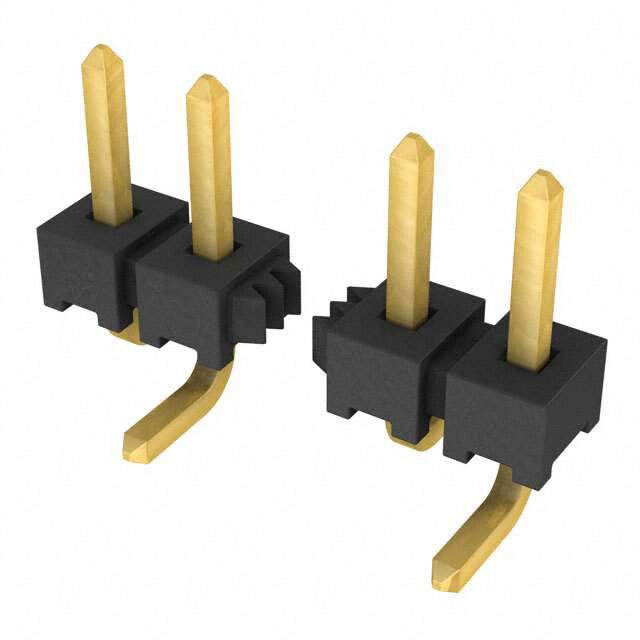

The TMM-108-01-G-S-SM-P is a connector product that has 8 positions and features pick and place.

• Positions: 8
• Feature: pick and place
• Connector Type: header
• Contact Type: male pin
• Positions Loaded: all
• Rows: one
• Termination: solder
• Fastening Type: push-pull
• Package: tube
• Contact Material: phosphor bronze
• Insulation Material: liquid crystal polymer (LCP)
• Style: board to board or cable
• Pitch for mating: 0.079 inches (2.00mm)
• Contact Finish for mating: gold, with a thickness of 20.0μin (0.51μm)
• Contact Finish for post: gold, with a thickness of 3.00μin (0.076μm)
• Insulation Color: black
• Feature: unshrouded
• Contact Length for mating: 0.126 inches (3.20mm)
• Contact Shape: square
• Operating Temperature Range: -55°C to 125°C
• Current Rating: 3.2A per contact
• HTSUS: 8536.69.4040
• Manufacturer: Samtec Inc.
• Base Product Number: TMM-108
