Same model may have multiple batches, images only for reference.

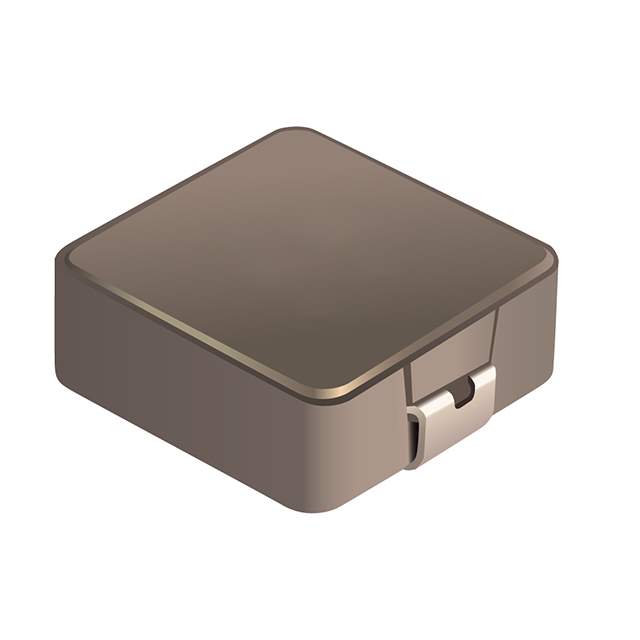

SRP1040VA-220M Real Image
Same model may have multiple batches, images only for reference.

SRP1040VA-220M

Part No SRP1040VA-220M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRP1040VA-220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1040VA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 6 A
Current - Saturation (Isat) 6.5A
Shielding Shielded
DC Resistance (DCR) 72mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 7MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 180°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Max) 0.157" (4.00mm)
Other Names 118-SRP1040VA-220MTR,118-SRP1040VA-220MDKR,118-SRP1040VA-220MCT
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274129-SRP1040VA-220M
Ultra Librarian 3D Model Ultra Librarian SRP1040VA-220M CAD Model

Description

The SRP1040VA-220M is a Bourns Inc. manufactured electronic component.

  • Series: SRP1040VA
  • Type: Drum core, wirewound
  • Shielding: Shielding
  • Inductance: 22 μH
  • Height: 0.157" (4.00mm)
