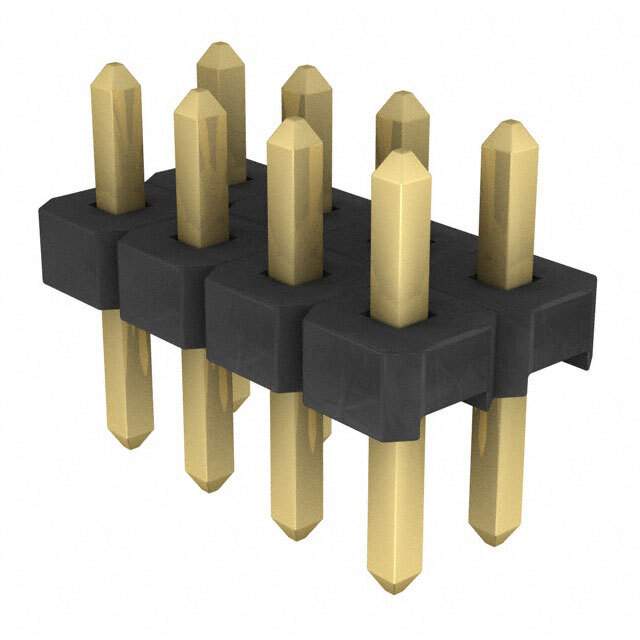

Same model may have multiple batches, images only for reference.

TLW-104-06-G-D

Name: TLW-104-06-G-D
Brand: Samtec Inc.
SKU: 802341
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TLW-104-06-G-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 8POS 2.54MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Samtec Inc.
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	8
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Style	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.105" (2.67mm)
Contact Length - Post	0.135" (3.43mm)
Overall Contact Length	0.300" (7.62mm)
Insulation Height	0.060" (1.52mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0μin (0.25μm)
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Insulation Color	Black
Current Rating (Amps)	5.2A per Contact
Contact Finish Thickness - Post	Flash
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	802341-TLW-104-06-G-D
Ultra Librarian 3D Model	Ultra Librarian TLW-104-06-G-D CAD Model

Description

The Samtec header connector is an electronic component.

Win Source Part Number: 802341-TLW-104-06-G-D
Positions: 8
Mounting: Through Hole
Connector Type: Header
Contact Type: Male Pin
Contact Material: Phosphor Bronze
Pitch: 0.100" (2.54mm)
Unshrouded: Yes
